Water Pump Drive Belt Disassembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the belt tensioner clockwise to release the drive belt tension and remove the belt.

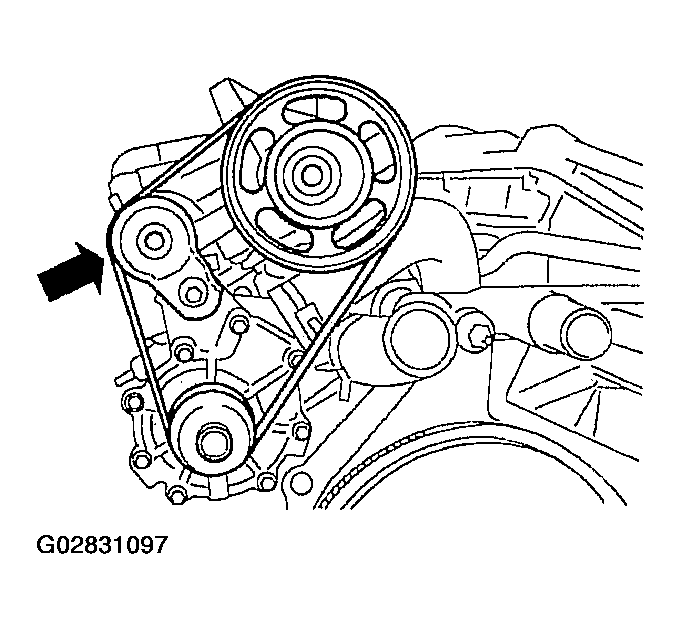

    Fig 1: Releasing Drive Belt Tension
    G02831097Courtesy of MAZDA MOTORS CORP.
