Engine Front Cover Assembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

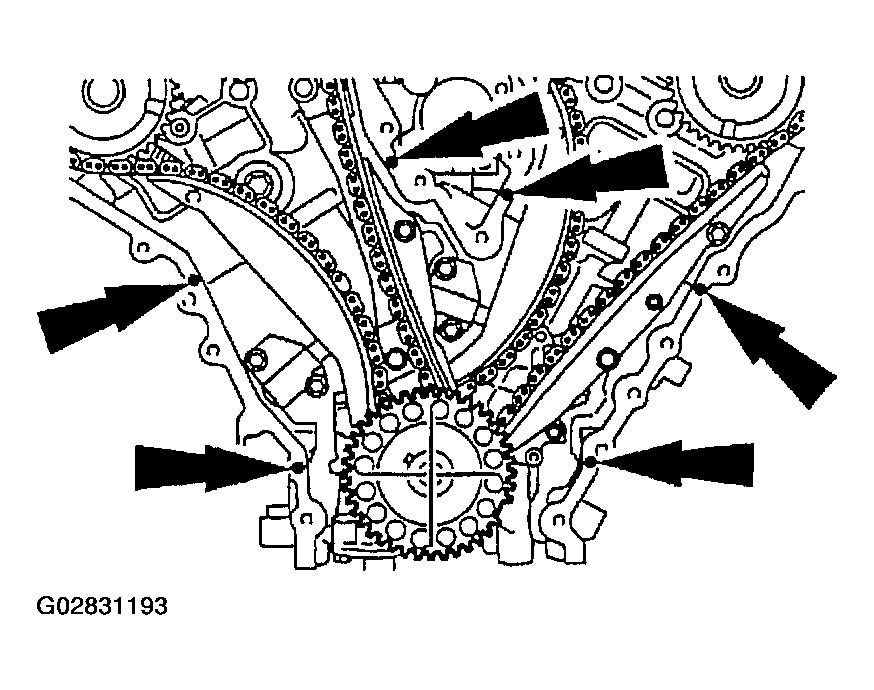

Apply a 6 mm {0.24 in} dot of silicon sealant as indicated in the figure (mating faces).

Fig 1: Applying Silicon Sealant
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts and studs in the order indicated in the figure.

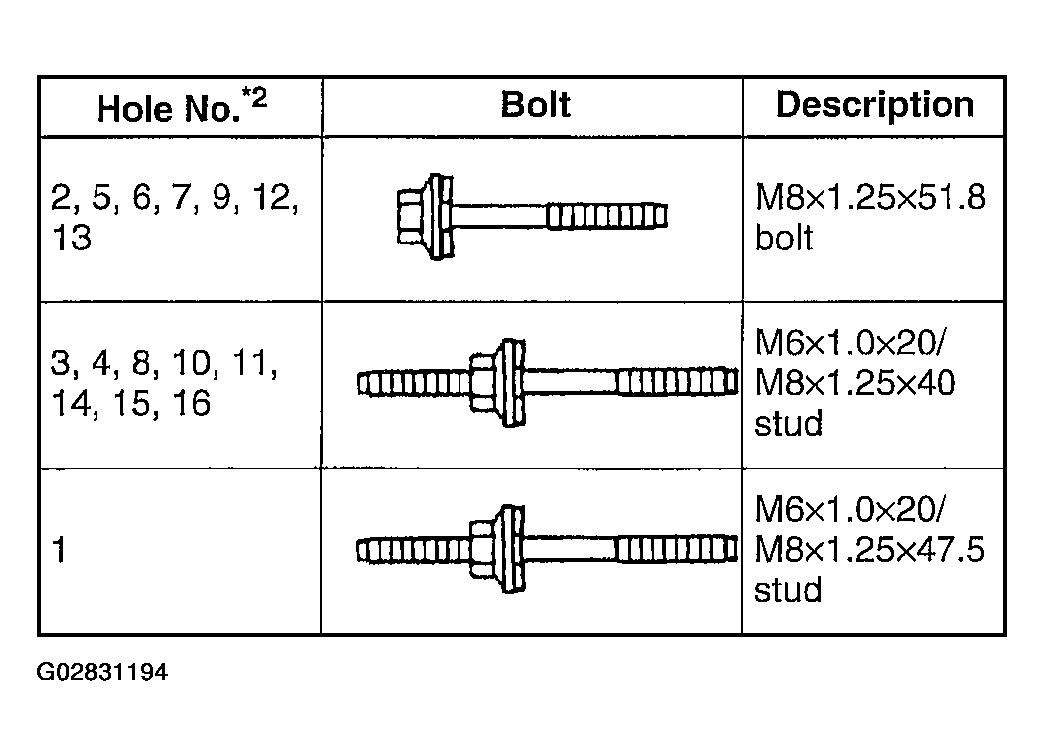

Fig 2: Identifying Bolts & Studs
Courtesy of MAZDA MOTORS CORP.

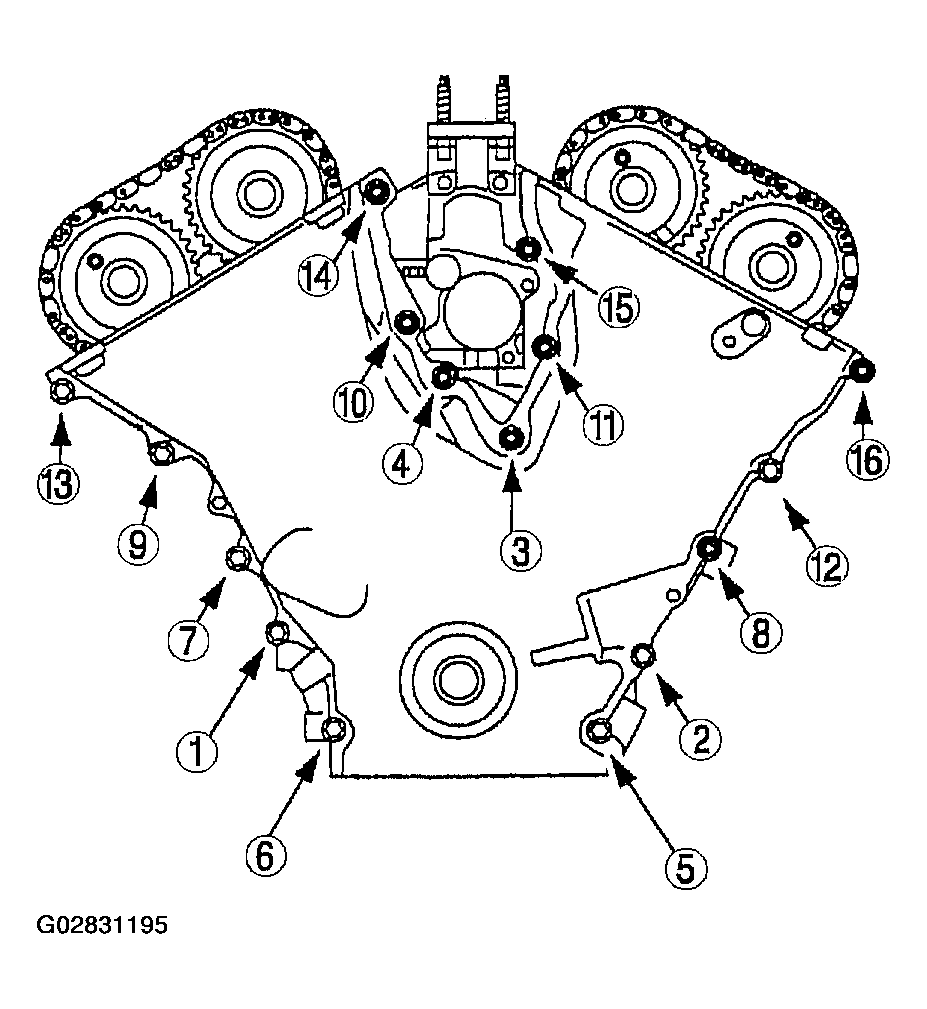

Fig 3: Engine Front Cover Assembly Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Assemble the front oil seal using part A of the SST (49 UN30 3335) and the SST (49 UN01 002) in the following order.
1. Apply clean engine oil to the oil seal.
2. Push the oil seal slightly in by hand.

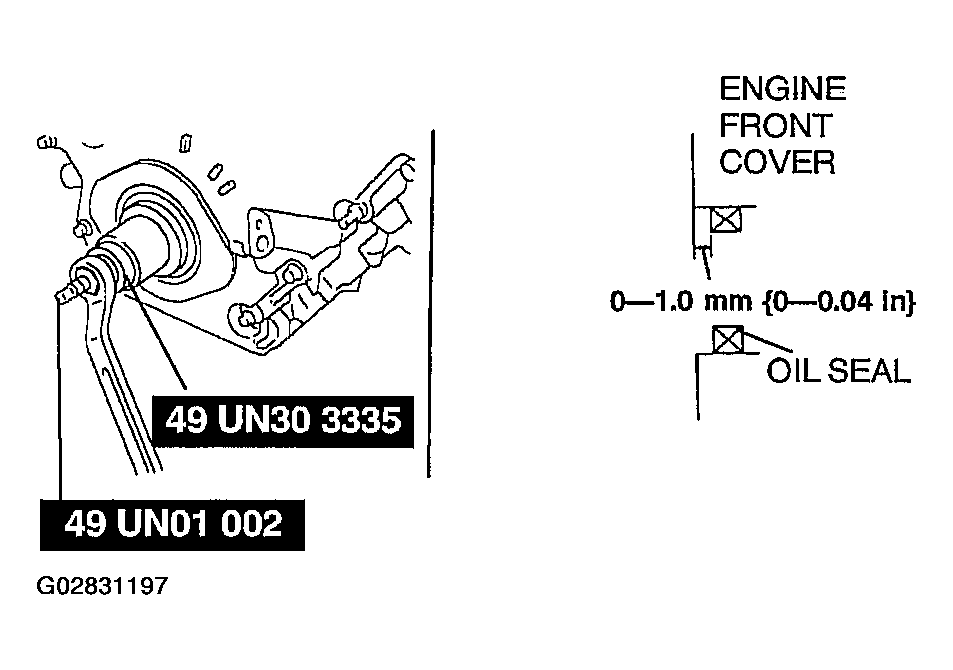

  Fig 4: Assembling Front Oil Seal & SST
  Courtesy of MAZDA MOTORS CORP.
3. Compress the oil seal using the SSTs .

  Fig 5: Installing Oil Seal
  Courtesy of MAZDA MOTORS CORP.
