Cylinder Head Cover Assembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply silicone sealant to the mating faces as indicated in the figure.

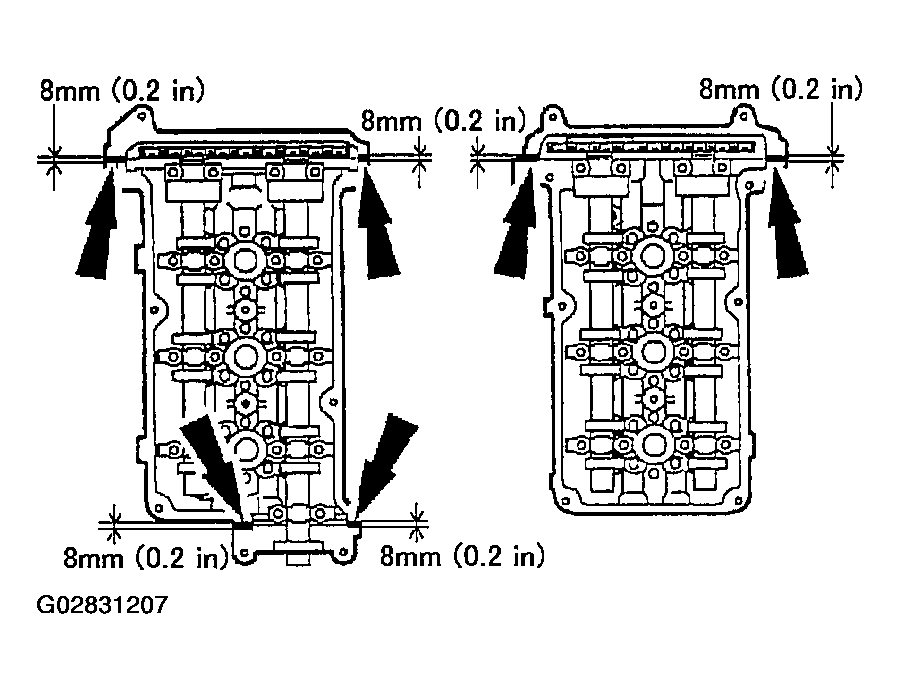

    Fig 1: Applying Silicone Sealant
    G02831207Courtesy of MAZDA MOTORS CORP.
  2. Install the cylinder head cover with a new gasket.
  3. Tighten the bolts in the order indicated in the figure.

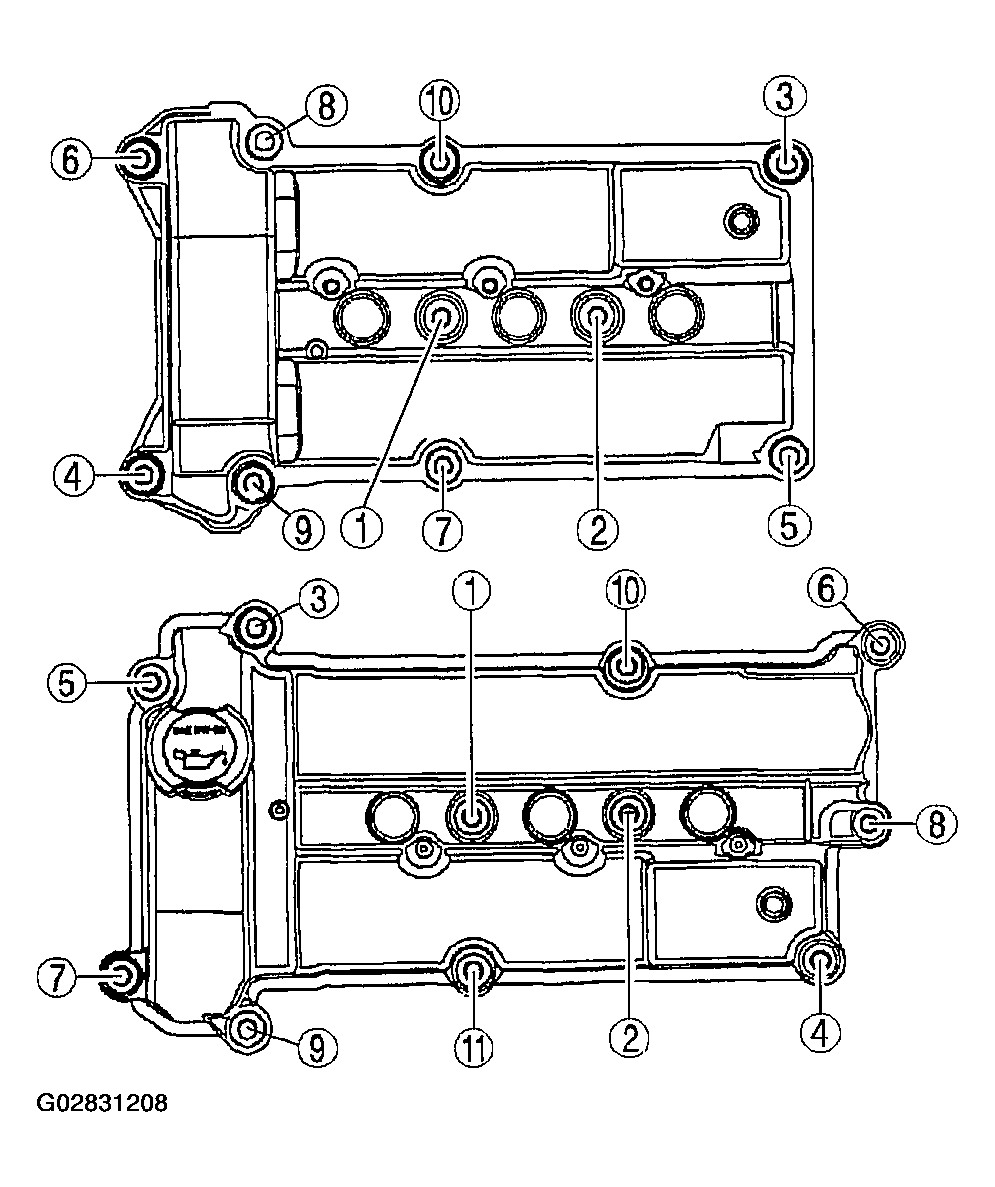

    Fig 2: Cylinder Head Cover Bolt Tightening Sequence
    G02831208Courtesy of MAZDA MOTORS CORP.
