Camshaft (LH) Assembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the crankshaft clockwise to position the crankshaft keyway in the 11 o'clock  position.

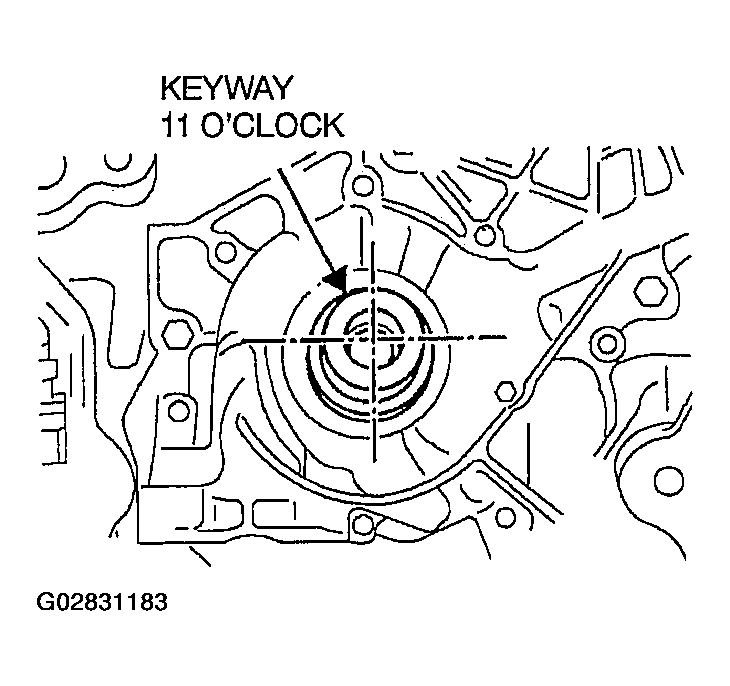

    Fig 1: Positioning Crankshaft Keyway In 11 O'clock Position
    G02831183Courtesy of MAZDA MOTORS CORP.
  2. Install the camshafts (LH).
    1. Position the intake camshaft so that the mark is at 9 o'clock  direction.
    2. Position the exhaust camshaft so that the mark is at 12 o'clock  direction.

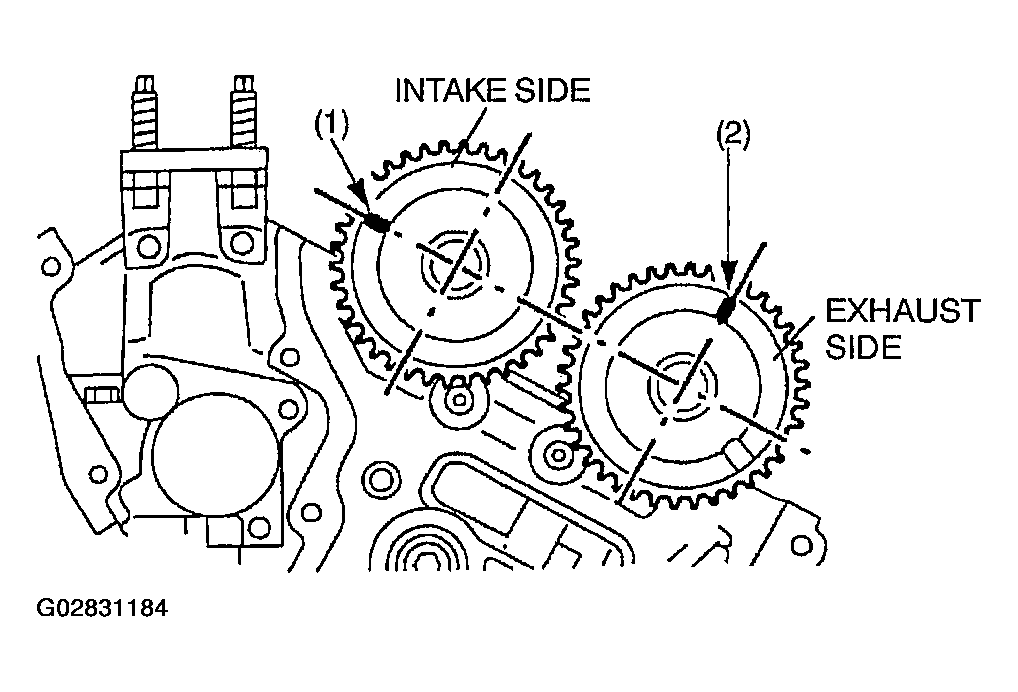

      3. Fig 2: Installing Camshafts
      G02831184Courtesy of MAZDA MOTORS CORP.
    3. CAUTION:
    • Do not install thrust caps 1L and 5L at this time, or damage to the thrust caps may occur.
    NOTE:
    • Tighten the camshafts caps at specified torque after assembling the timing chain.
    • The camshaft bearing caps are numbered to make sure they are assembled in their original positions.
  3. Hand tighten the camshaft (LH) caps in their original positions.
