Engine Technical Data

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

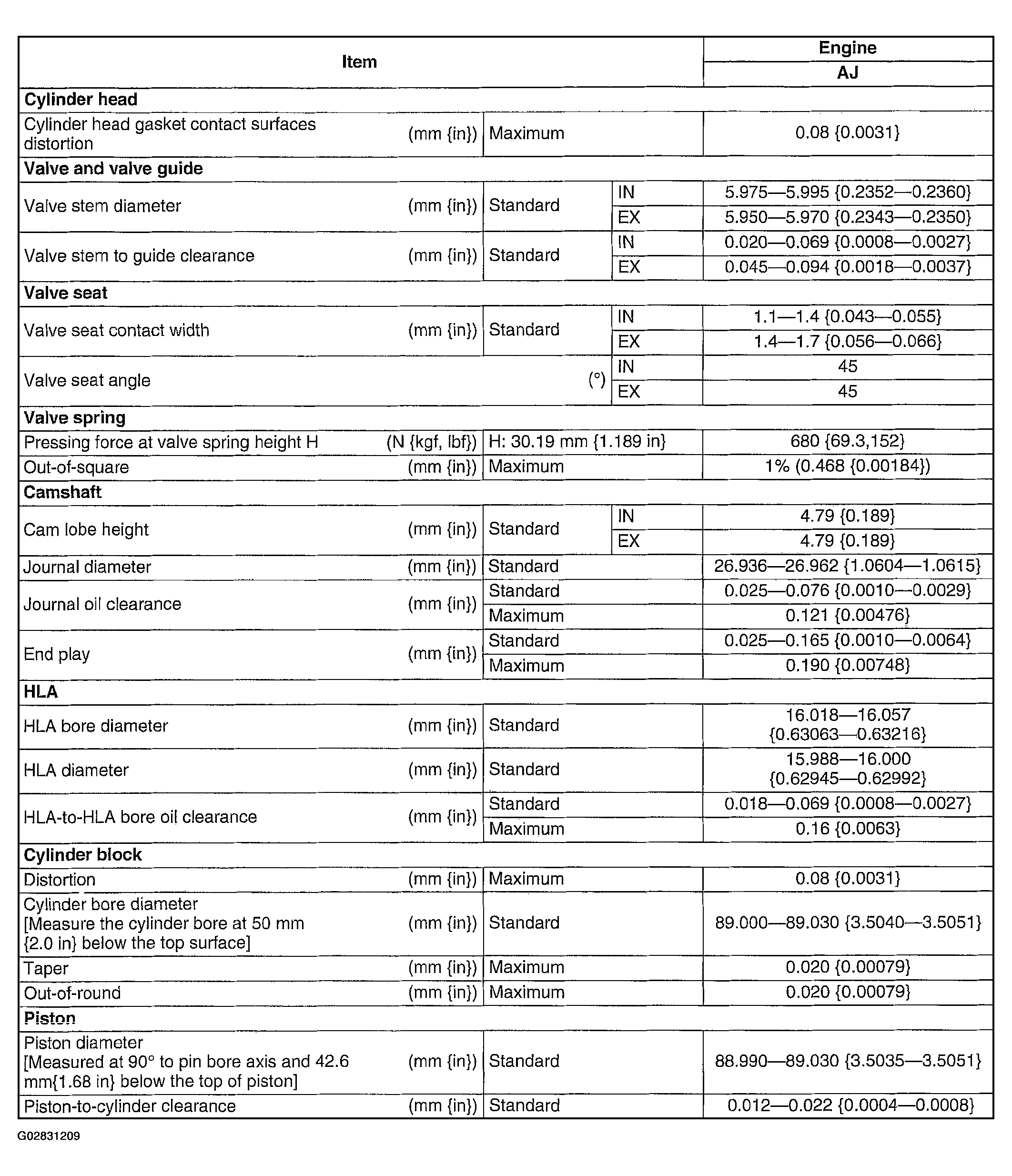

Fig 1: Engine Technical Data (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

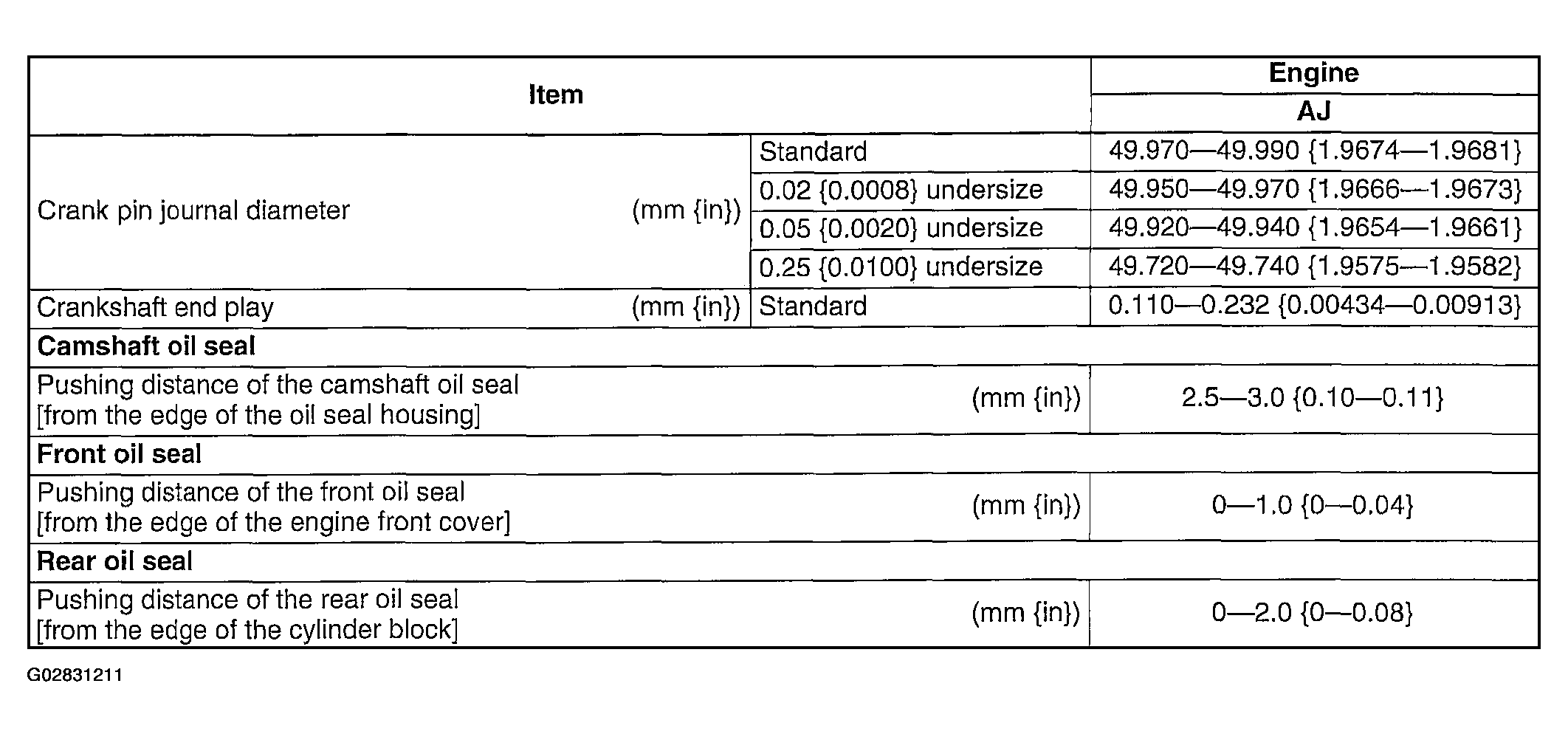

Fig 2: Engine Technical Data (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

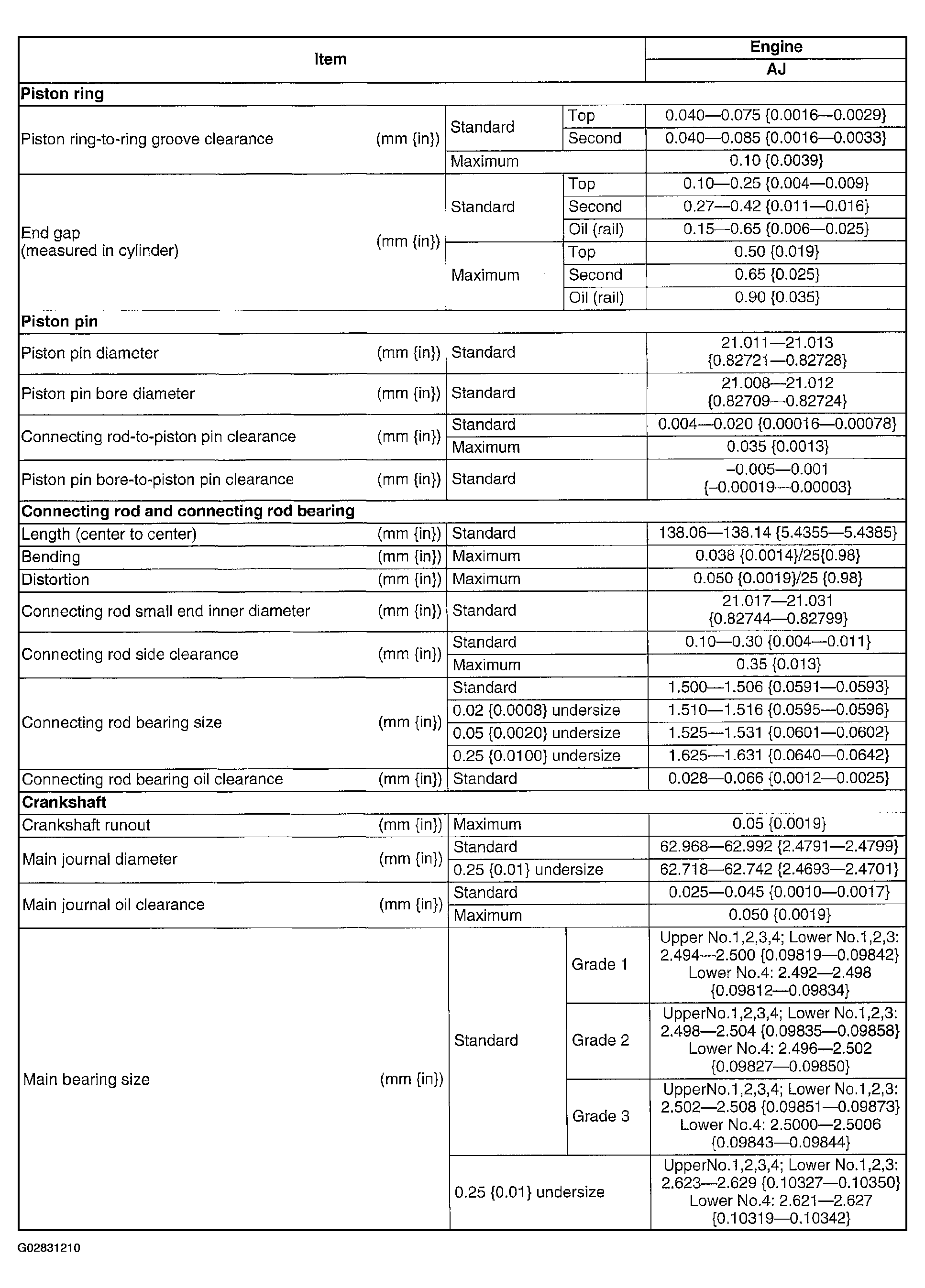

Fig 3: Engine Technical Data (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
