Engine Mounting
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

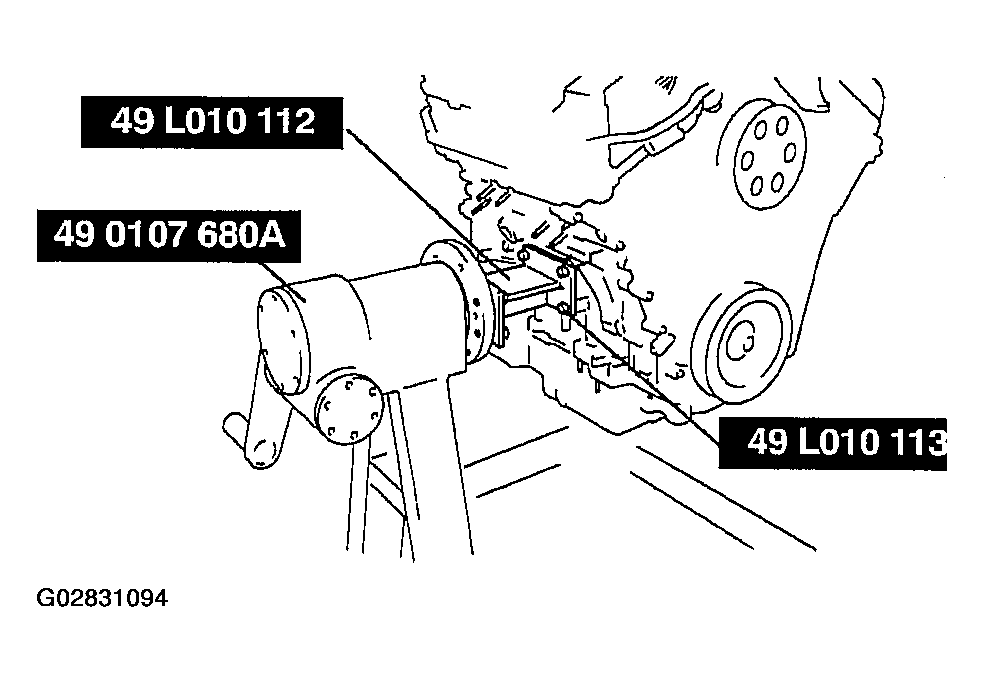

- Install the SST (engine hanger) to the cylinder block holes as indicated in the figure, and tighten the SSTs (bolts).
- Mount the engine on the SST (engine stand).
- Drain the engine oil into a container.
- Clean the flange surface (seal rubber) of the drain plug, then install the plug.
Tightening Torque
- 22-30 N.m {2.2-3.1 kgf.m, 16-22 ft.lbf}
