Water Pump Assembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install new bolts and tighten them in two steps.
    1. Tighten to 10.0 N.m {102 kgf.cm, 88.5 in.lbf}  .
    2. Tighten 85°-95°  .

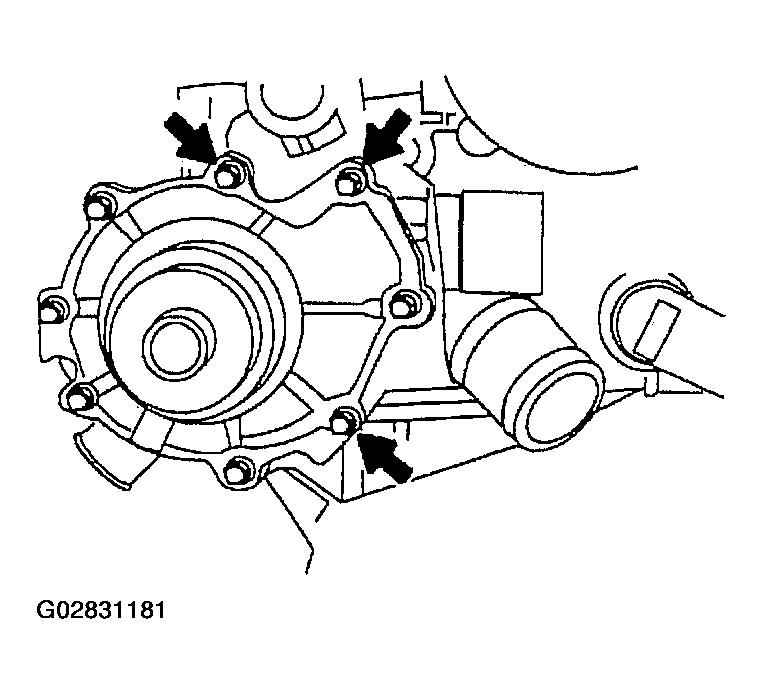

      Fig 1: Tightening Water Pump Bolts
      G02831181Courtesy of MAZDA MOTORS CORP.
