Oil Pump Assembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the bolts in the order indicated in the figure.

    Tightening Torque

    1. 8.0-12.0 N.m {82-122 kgf.cm, 71-106 in.lbf}

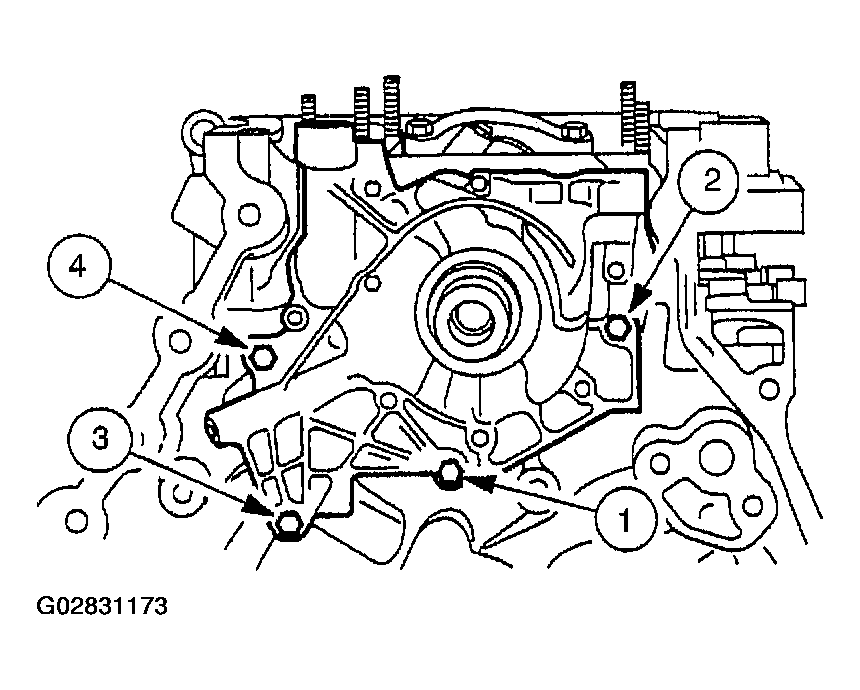

      Fig 1: Oil Pump Bolt Tightening Sequence
      G02831173Courtesy of MAZDA MOTORS CORP.
