Oil Baffle Assembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the nuts in two steps.
    1. Tighten nuts A to 5.0 N.m {51.0 kgf.cm, 44.3 in.lbf}  , then nuts B to 15.0 N.m {153 kgf.cm, 133 in.lbf}  .
    2. Tighten 45°  using the SST  .

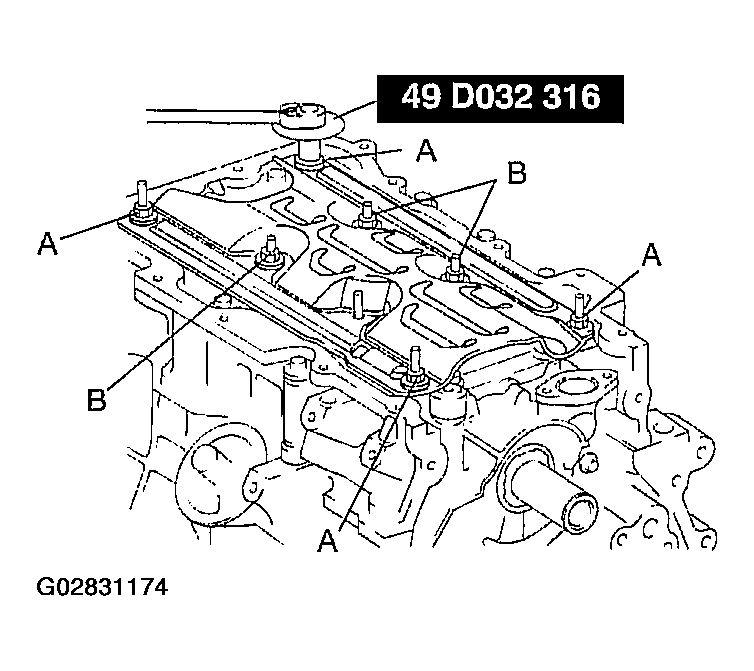

      Fig 1: Oil Baffle Nut Identification
      G02831174Courtesy of MAZDA MOTORS CORP.
