Piston, Connecting Rod Assembly Note

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the end gap of each ring as indicated in the figure.
    Fig 1: Positioning Piston Ring End Gaps
    G02831169Courtesy of MAZDA MOTORS CORP.
  2. Insert the piston and connecting rod into the cylinder with the arrow mark to front of the engine.

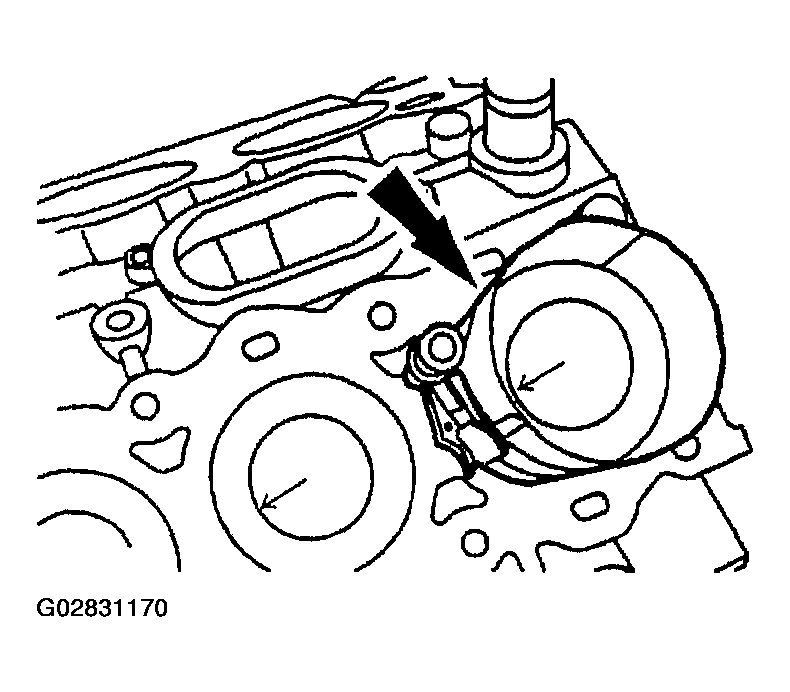

    Fig 2: Installing Piston
    G02831170Courtesy of MAZDA MOTORS CORP.
