Connecting Rod Inspection
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

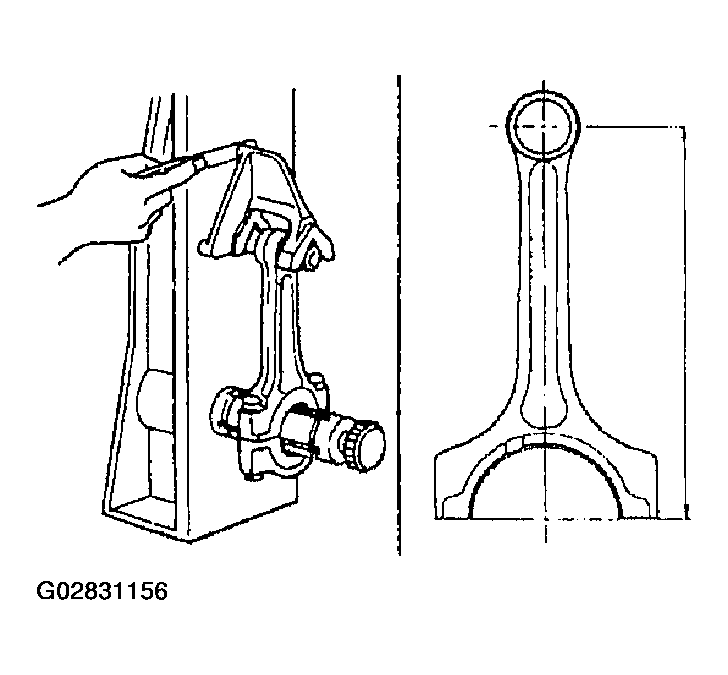

- Measure each connecting rod for bending and distortion.
- If not as specified, replace the connecting rod.
Bending
- 0.038 mm {0.0014 in}max./25 mm {0.98 in}
Distortion
- 0.050 mm {0.0019 in}max./25 mm {0.98 in}
Center-To-Center Distance
- 138.06-138.14 mm {5.4355-5.4385 in}
