Camshaft End Play Inspection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 Mazda MPV, 2005 Mazda MPV, 2004 Mazda MPV, 2004 Mazda 6, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Measure the camshaft end play.
- If the camshaft end play exceeds the maximum end play, replace the cylinder head or camshaft.
Standard End Play
1. 0.025-0.165 mm {0.0010-0.0064 in}
Maximum End Play
1. 0.190 mm{0.00748 in}

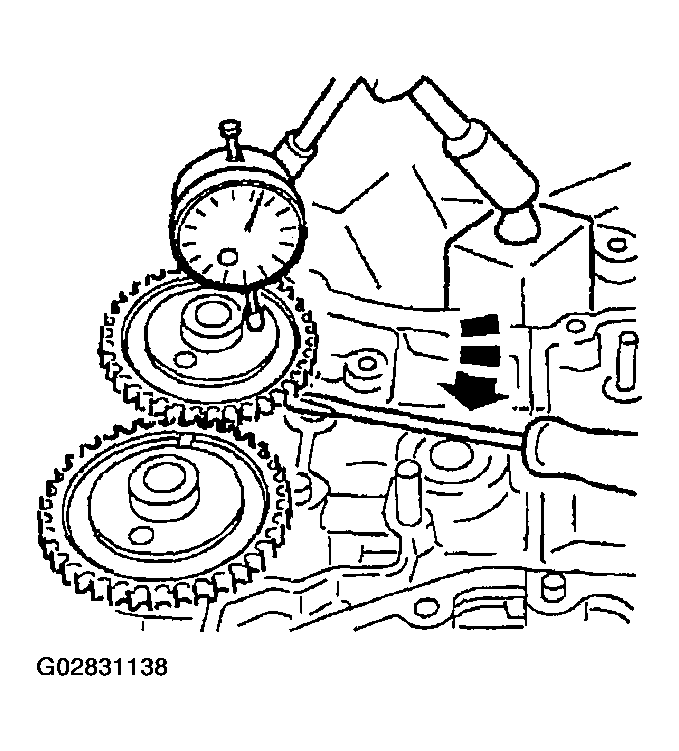

  Fig 1: Measuring Camshaft End Play
  Courtesy of MAZDA MOTORS CORP.
Remove the camshaft cap. (See CAMSHAFT (RH) DISASSEMBLY NOTE .) (See CAMSHAFT (LH) DISASSEMBLY NOTE .)
