WARNING: This page is about a different car, the 2004 Mazda Tribute and 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

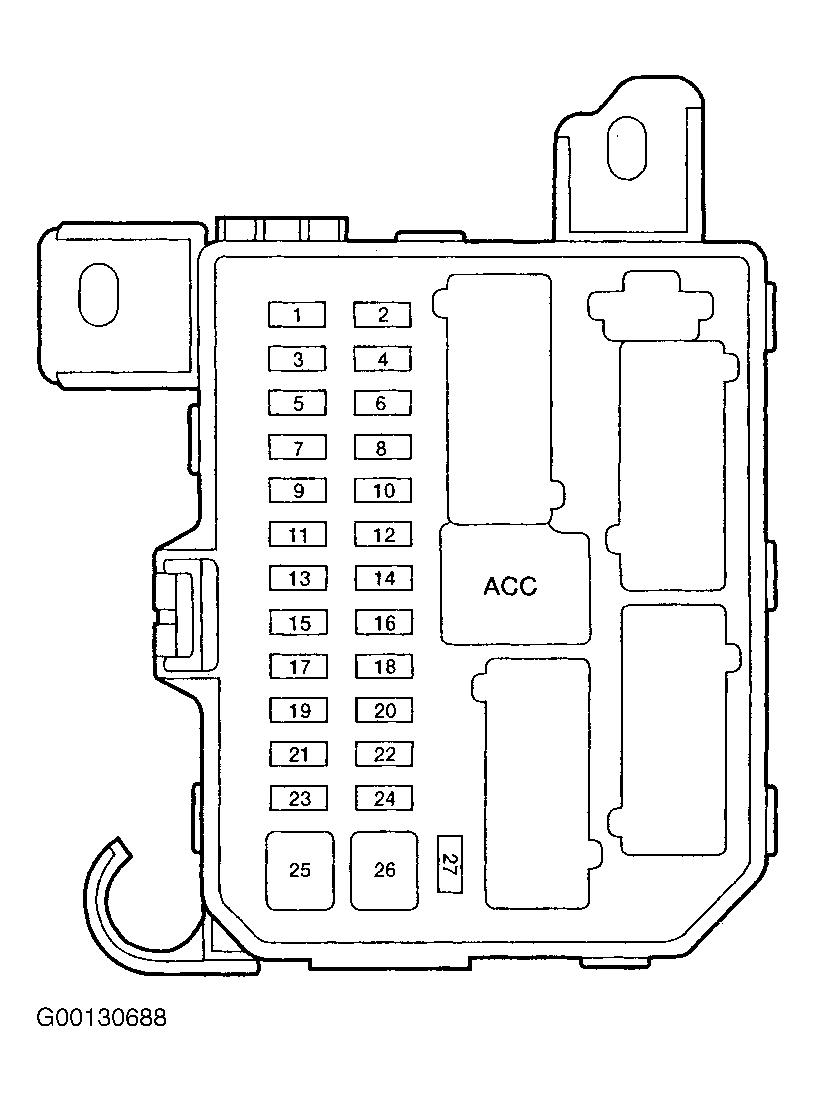

Instrument panel fuse block is located under driver's side of instrument panel, by brake pedal.
