Engine Compartment Fuse Block

WARNING: This page is about a different car, the 2004 Mazda Tribute and 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Engine compartment fuse block is located on driver's side of engine compartment. See Fig 1 .

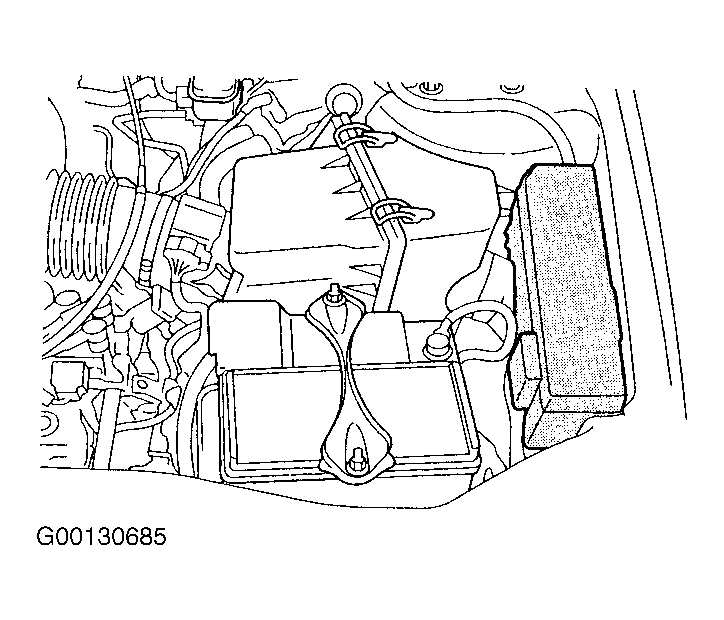

Fig 1: Locating Engine Compartment Fuse Box

Courtesy of MAZDA MOTORS CORP.

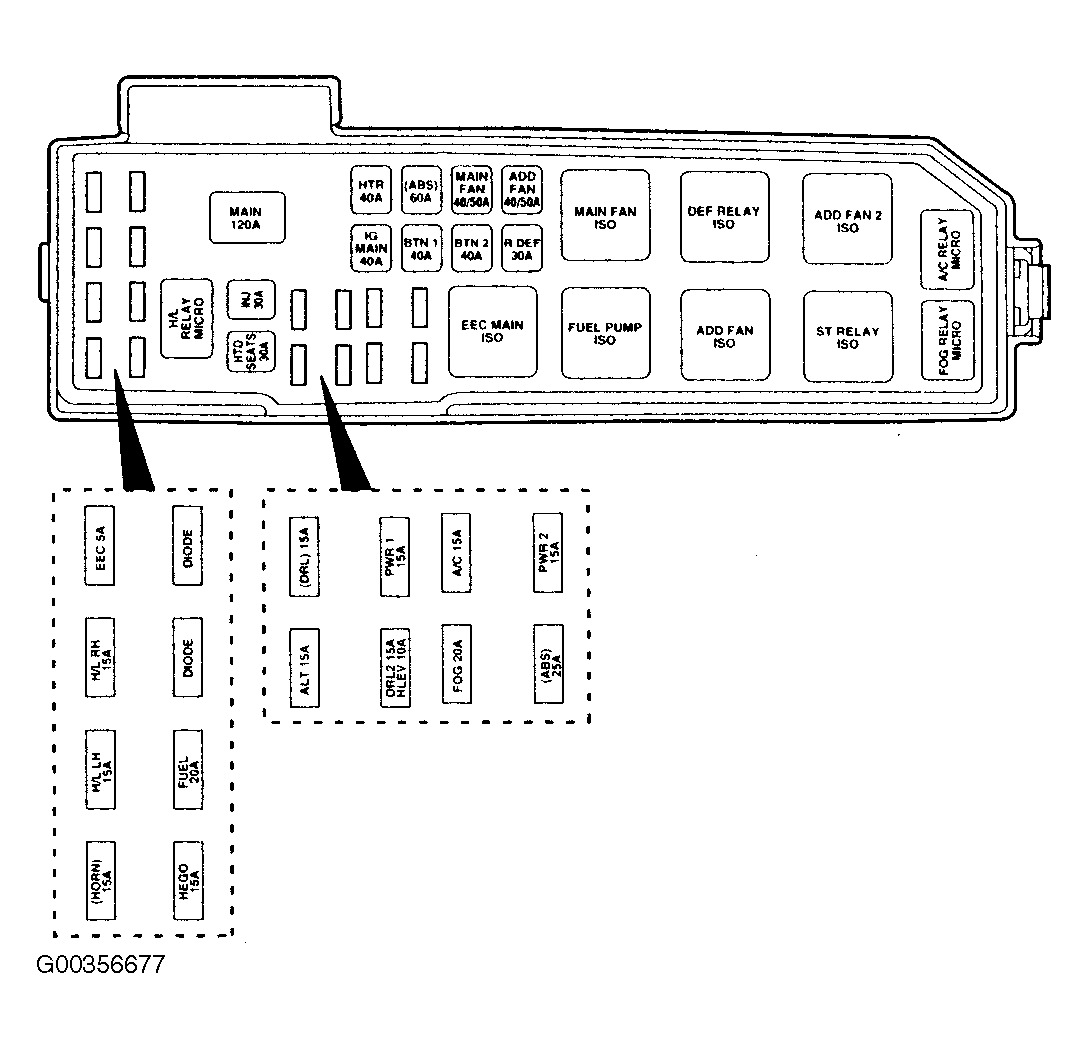

Fig 2: Identifying Engine Compartment Fuse Box Components

Courtesy of MAZDA MOTORS CORP.

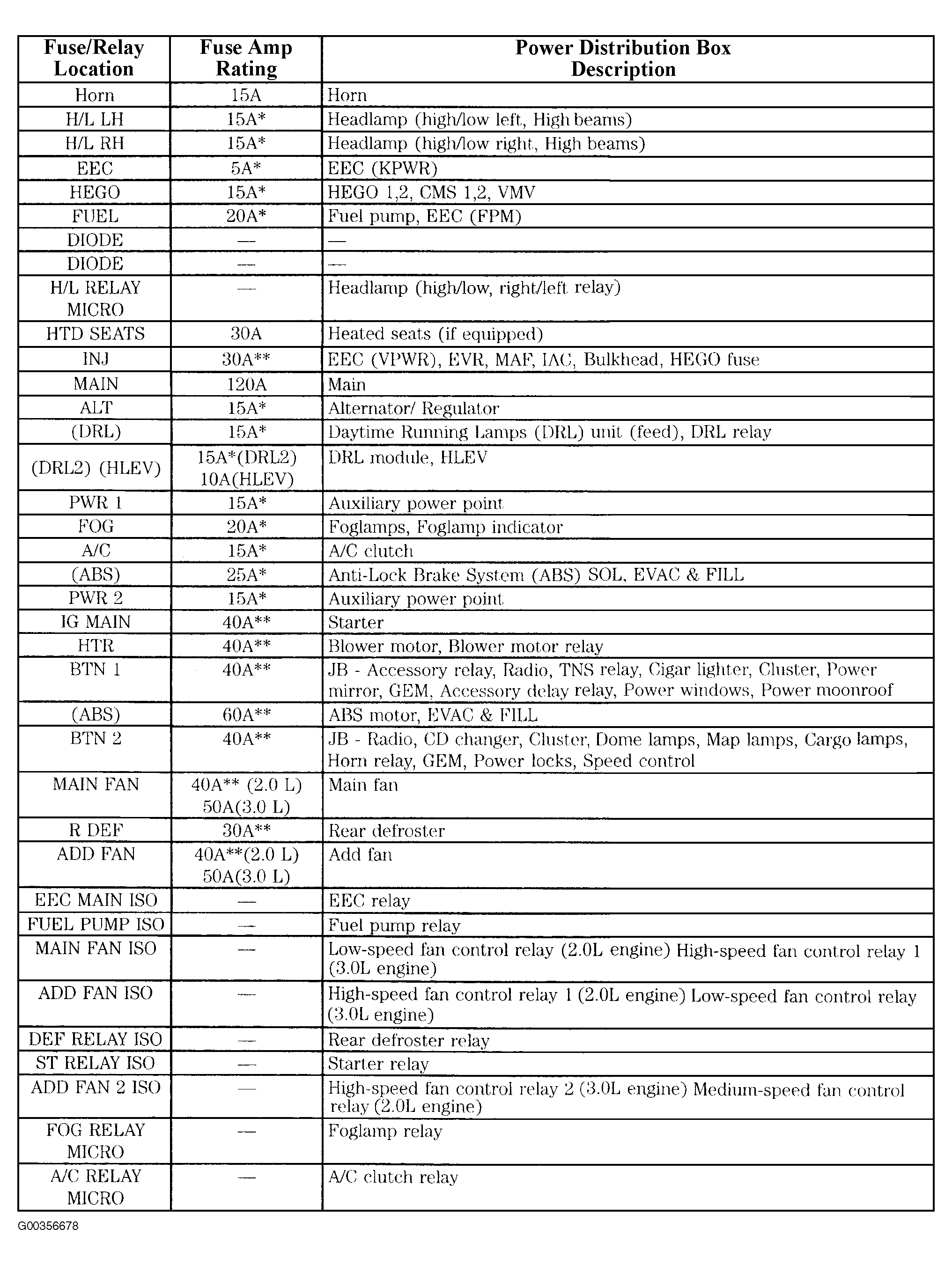

Fig 3: Engine Compartment Fuse Box Legend

Courtesy of MAZDA MOTORS CORP.
