Front Lower Arm (Front) Ball Joint Removal Note

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Separate the ball joint from the knuckle using the Ball Joint Puller Set (49-T028-3A0). See Fig 1 .

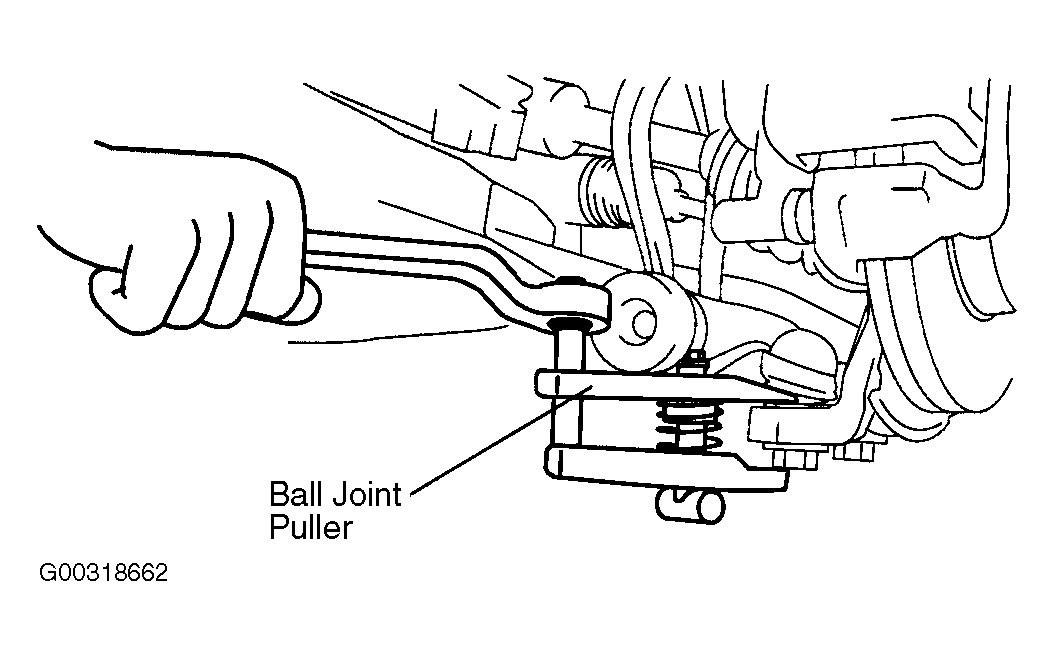

Fig 1: Removing Front Lower Arm (Front) Ball Joint
G00318662Courtesy of MAZDA MOTORS CORP.
