Intermediate Shaft (3.0L): Reassembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Assemble in the order indicated in the illustration. See Fig 1 .

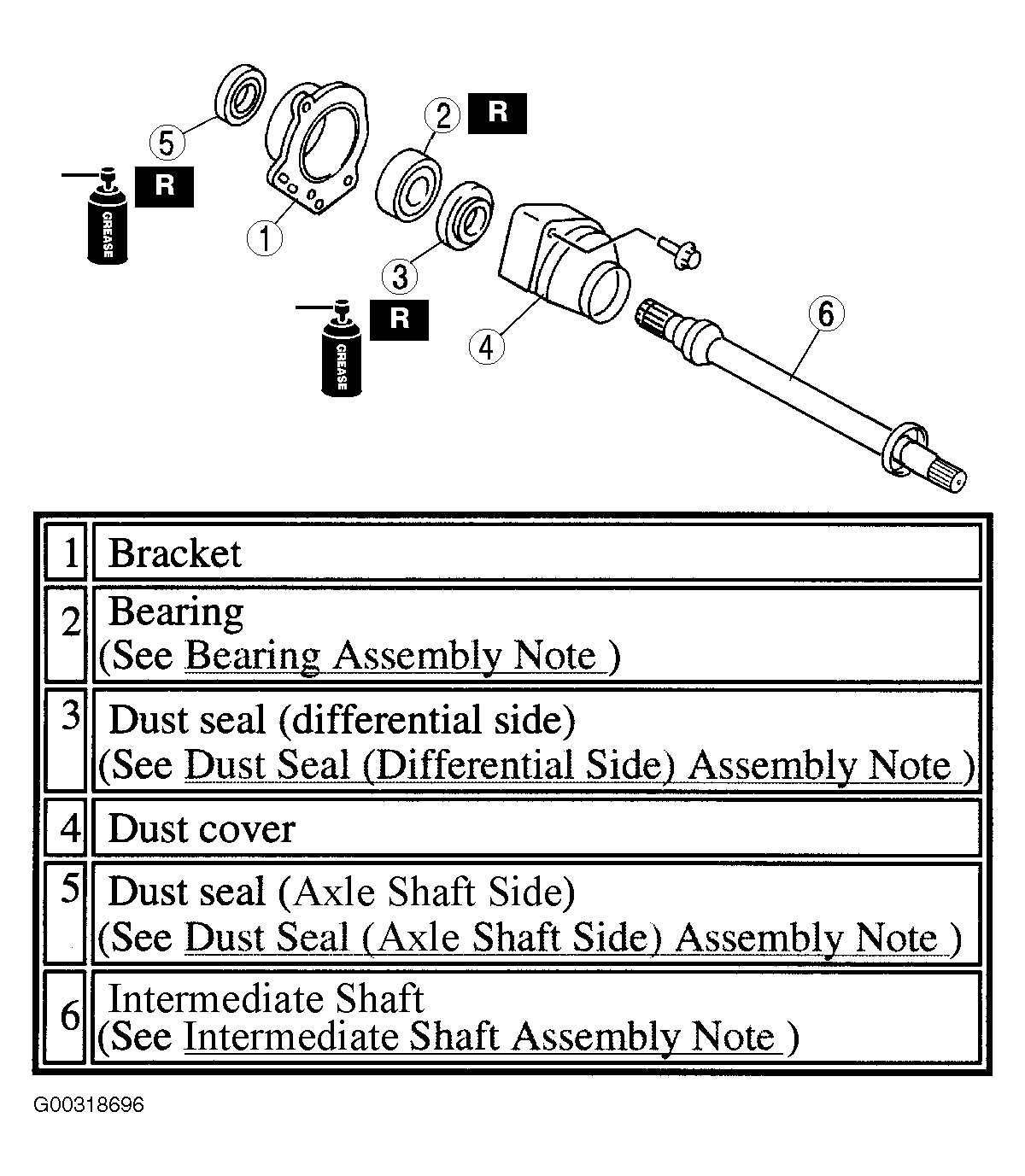

Fig 1: Exploded View Intermediate Shaft (3.0) Reassembly

Courtesy of MAZDA MOTORS CORP.
