Boot Band (Transaxle Side) Disassembly Note

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

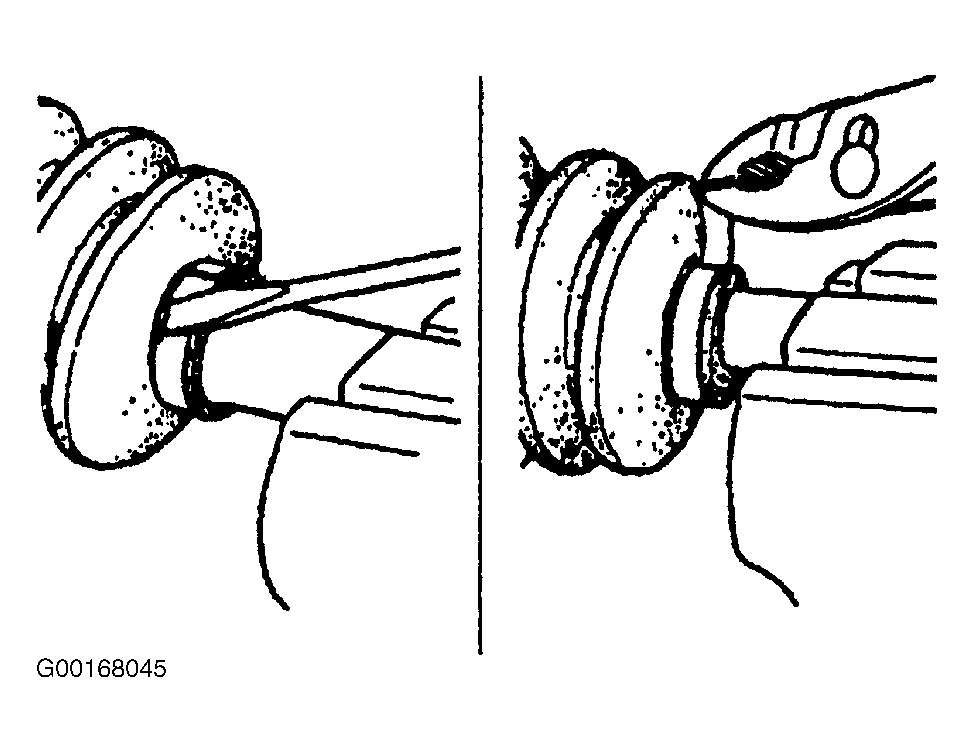

Pry up the locking clips using a screwdriver. Pull back the end of the band. See Figure .
