Intermediate Shaft: Disassembly

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration. See Fig 1 .

Dust Cover Disassembly Note - While holding the intermediate shaft, press out the dust cover by using the Bearing Remover (49-H027-002). See Fig 2 .

Intermediate Shaft Disassembly Note - Disassemble the intermediate shaft using the Support Block (49-H034-201). See Fig 3 .

Dust Seal (Left Side) Disassembly Note - Remove the left side dust seal and bearing by using the Bearing Installer (49-F026-102) and the Support Block (49-H034-201). See Fig 4 .

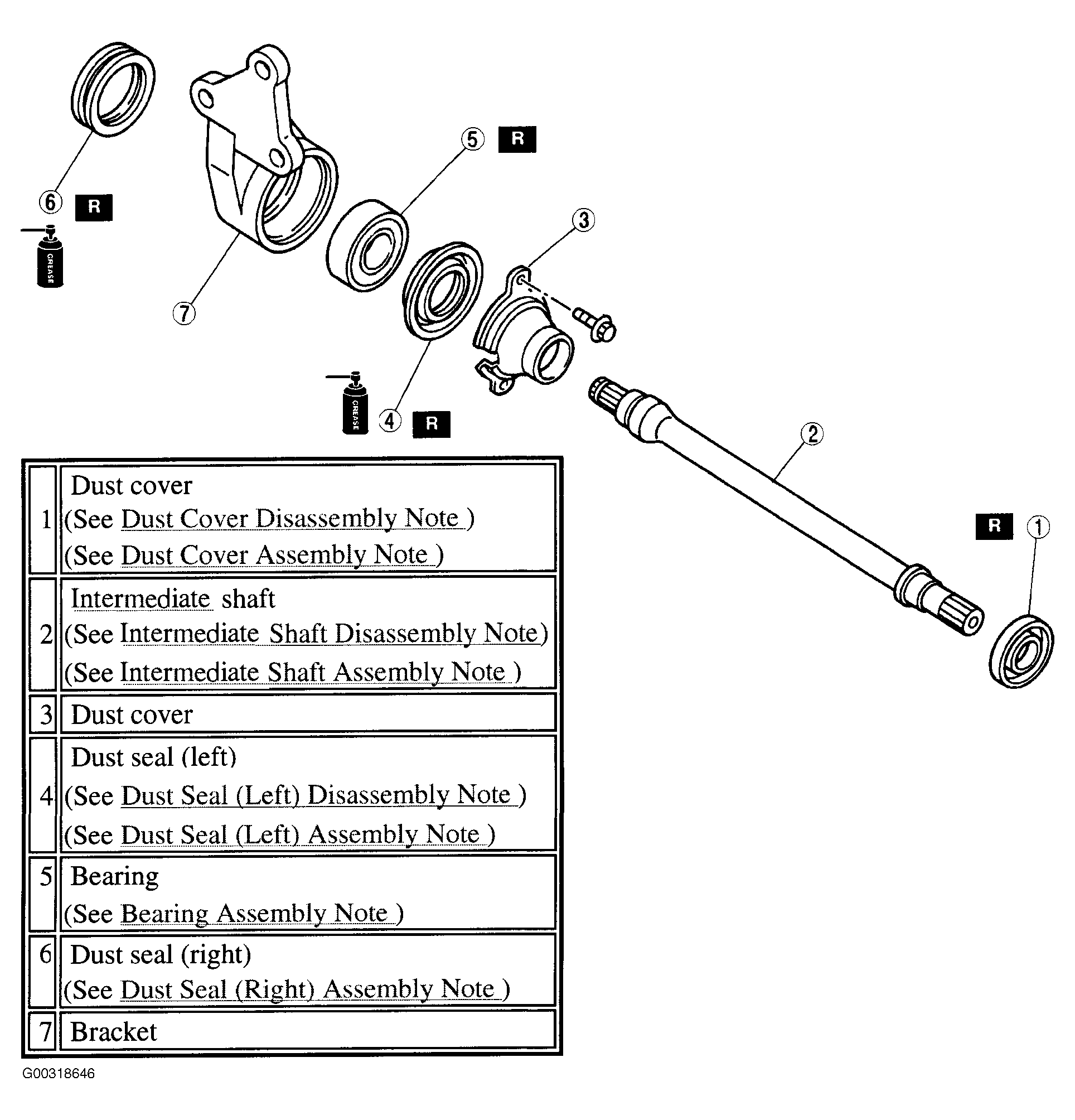

Fig 1: Exploded View Intermediate Shaft

Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing Bearing

Courtesy of MAZDA MOTORS CORP.

Fig 3: Disassembling Intermediate Shaft

Courtesy of MAZDA MOTORS CORP.

Fig 4: Removing Bearing On Bracket

Courtesy of MAZDA MOTORS CORP.
