Cooling Fan Motor: 3.0L

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that the battery is fully charged.
  2. Disconnect the fan control module 3-pin harness connector.
  3. Connect the positive battery voltage and an ammeter to the fan control module connector on fan motor side. See Fig 1.
  4. Verify that the fan motor operates smoothly at the standard current draw (11.8-14.8 amps). If not as specified, replace the fan motor.
  5. Repeat procedure for cooling fan motor No. 2.

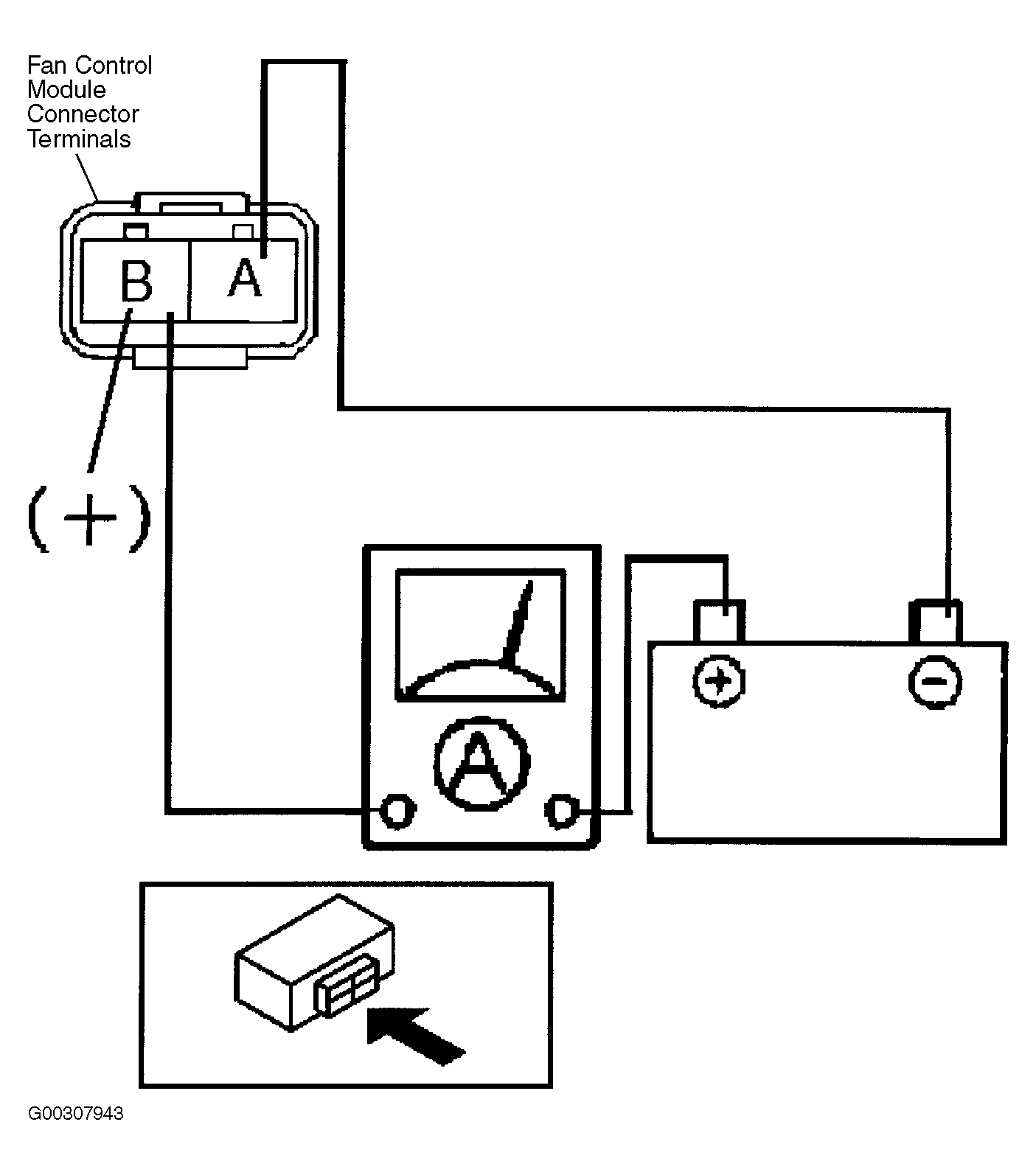

Fig 1: Checking Cooling Fan Motor Current Draw (3.0L)
G00307943Courtesy of MAZDA MOTORS CORP.
