Drive Belt Routing (3.0L)

WARNING: This page is about a different car, the 2004 Mazda 6 and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

On 3.0L, see Figure for front drive belt routing.

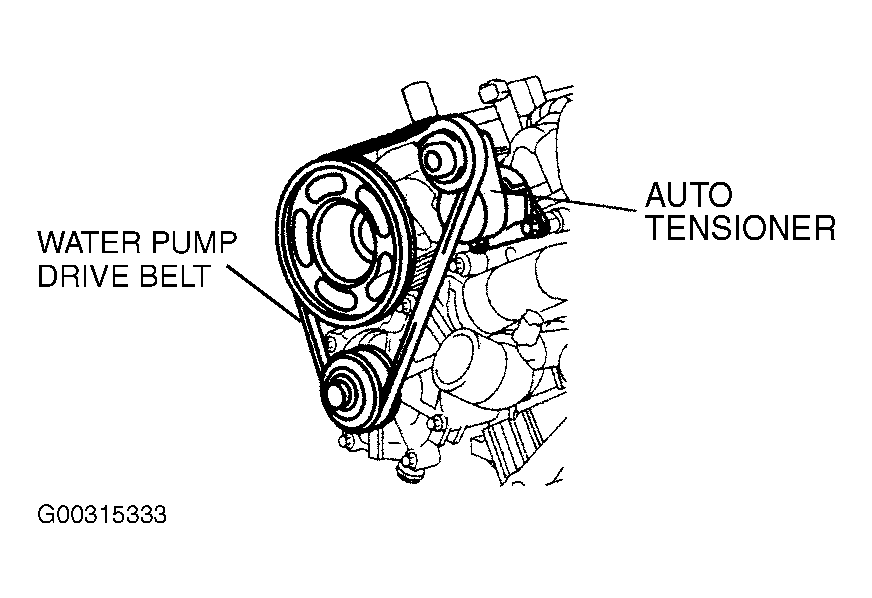

Fig 1: Water Pump Drive Belt Routing (3.0L)
G00315333Courtesy of MAZDA MOTORS CORP.
