Intermediate Shaft: Inspection

WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the intermediate shaft is not twisted or cracked. Replace it if necessary.
Turn the intermediate shaft by hand and verify that the bearing rotates smoothly and freely. See Fig 1 . Replace it if necessary.

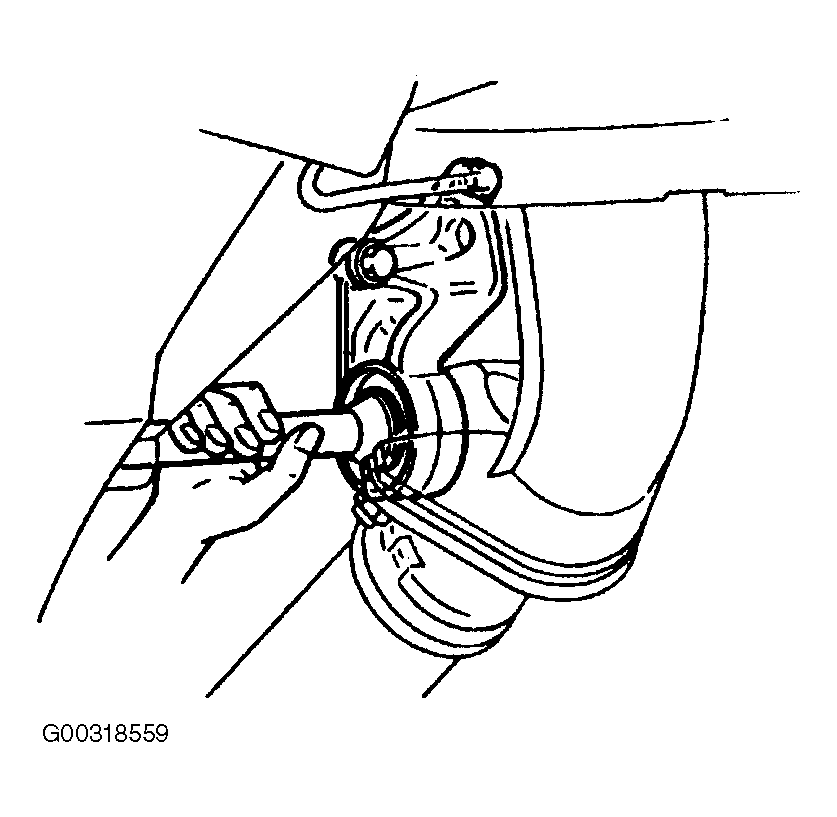

Fig 1: Inspecting Intermediate Shaft

Courtesy of MAZDA MOTORS CORP.
