Intermediate Shaft: Disassembly

WARNING: This page is about a different car, the 2004 Mazda MPV, 2003 Mazda MPV, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration. See Fig 1 .

Intermediate Shaft Disassembly Note - Disassemble the intermediate shaft using the V-Block and Dust Seal assembly, as shown in the illustration. See Fig 2 .

CAUTION: Support the inner race of the bearing. If not possible, do not reuse it.

Bearing Disassembly Note - Remove the bearing using the Handle (49-G030-797), Bearing Installer (44-H025-001), and Support Block (49-G026-103), as shown in the illustration. See Fig 3 .

CAUTION: Do not damage the rubber part of the dust cover.

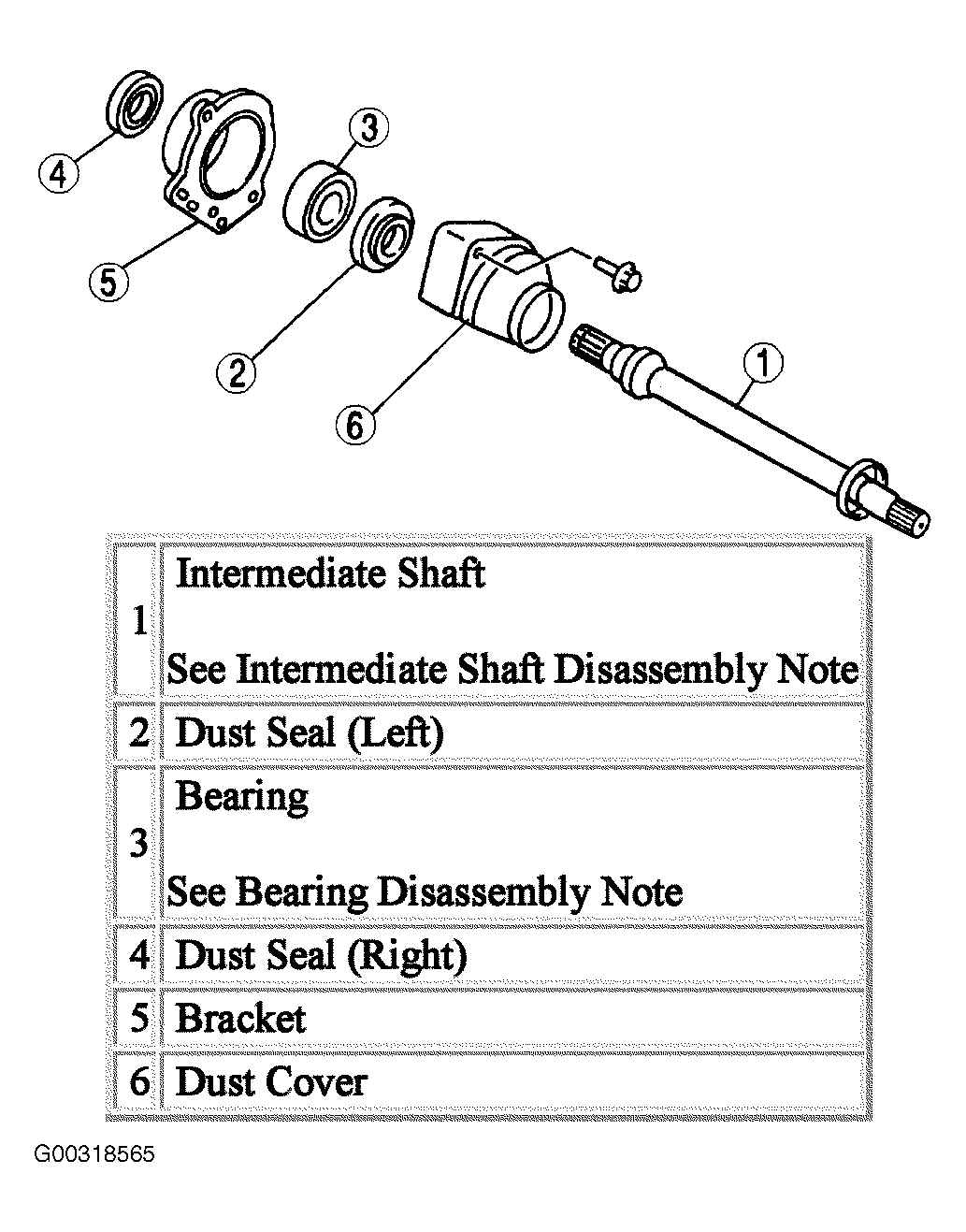

Fig 1: Exploded View Intermediate Shaft

Courtesy of MAZDA MOTORS CORP.

Fig 2: Disassembling Intermediate Shaft

Courtesy of MAZDA MOTORS CORP.

Fig 3: Removing Bearing

Courtesy of MAZDA MOTORS CORP.
