Except 626 2.0L A/T

WARNING: This page is about a different car, the 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, 2001 Mazda MPV, and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for starter operation with ignition switch in START position and shift lever in "P" and "N" position only. Ensure back-up lights illuminate with ignition in ON position and selector lever in "R".
  2. To test switch, disconnect transmission range switch connector. Check for continuity between specified terminals at transmission range switch. See Fig 1 , Fig 2 , Fig 3 , Fig 4 or Fig 5 . If continuity is not as specified, replace switch.
Fig 1: Checking Transmission Range Switch (Miata)
G99A03107Courtesy of MAZDA MOTORS CORP.

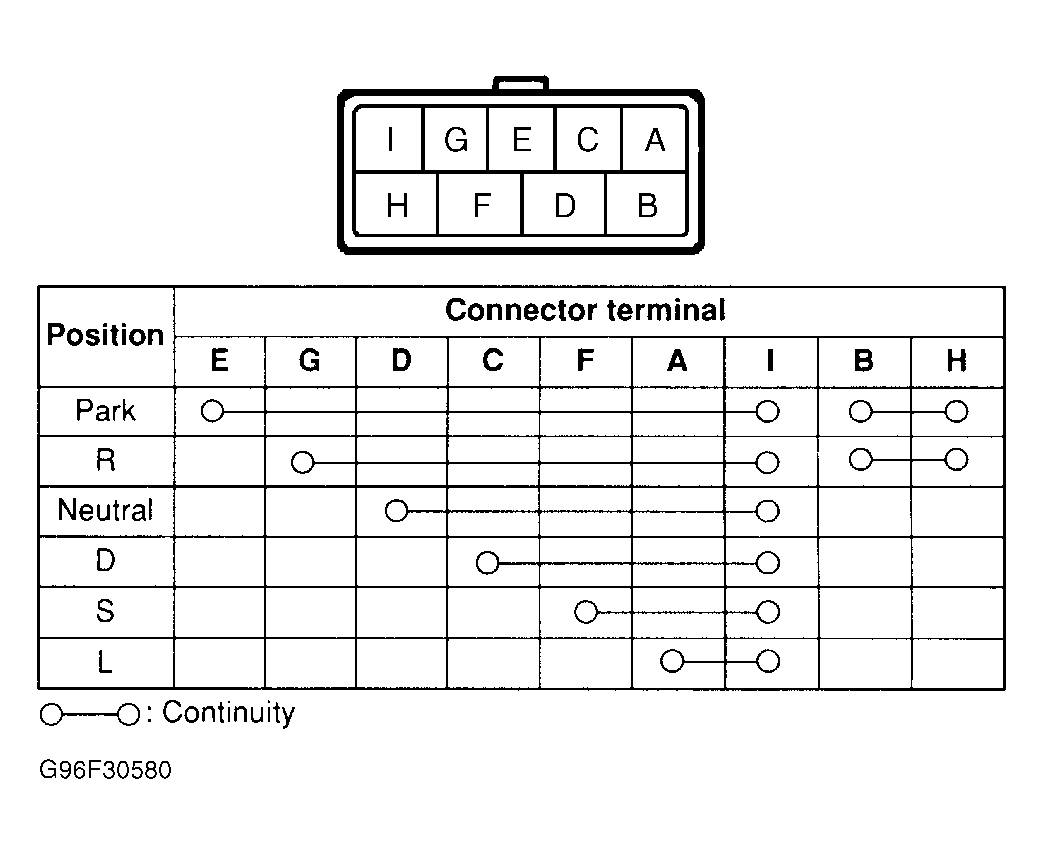

Fig 2: Checking Transmission Range Switch (Millenia 2.3L)
G96F30580Courtesy of MAZDA MOTORS CORP.
Fig 3: Checking Transmission Range Switch (Millenia 2.5L & 626 2.5L)
G95J20007Courtesy of MAZDA MOTORS CORP.

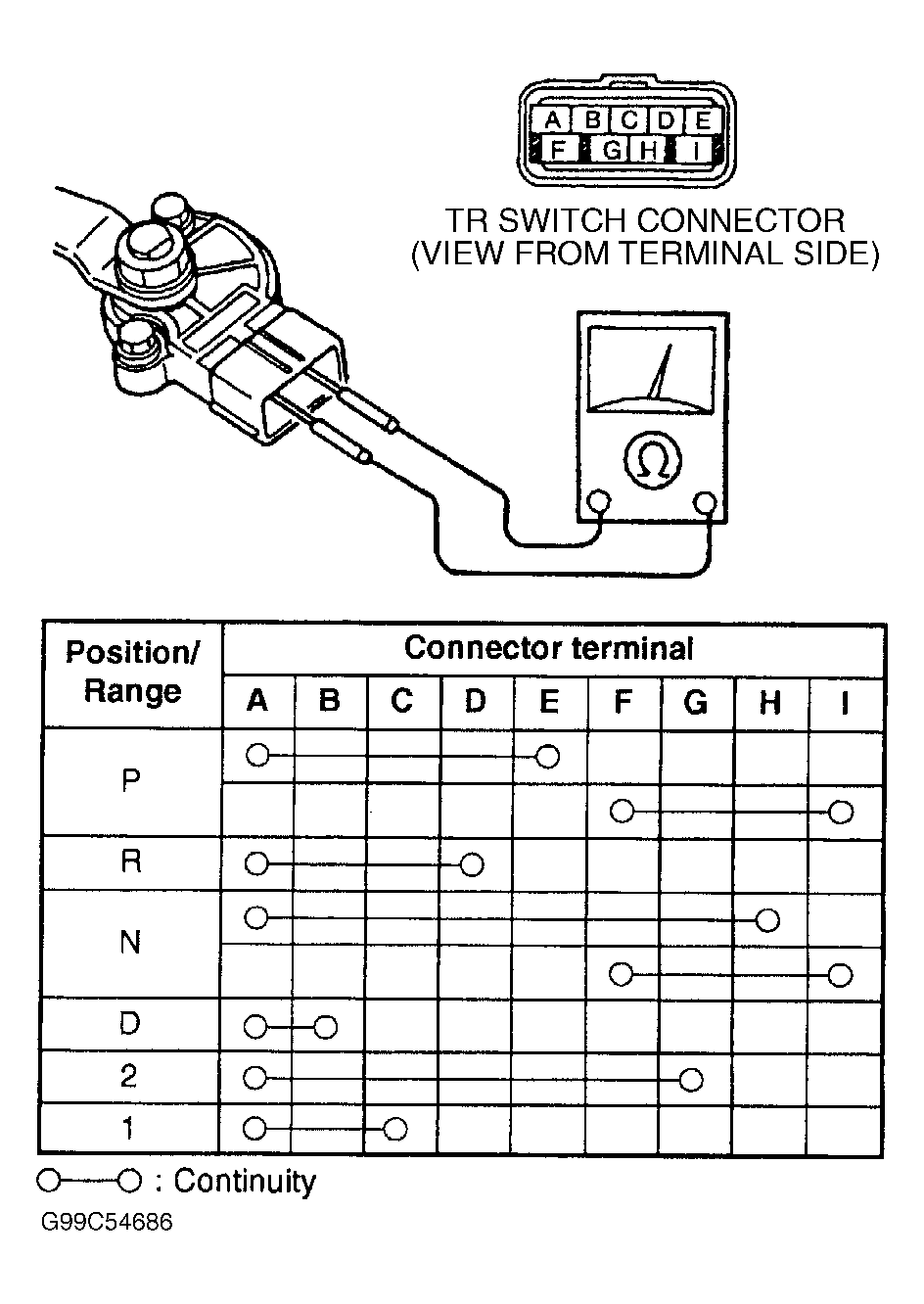

Fig 4: Checking Transmission Range Switch (MPV)
G99C54686Courtesy of MAZDA MOTORS CORP.
Fig 5: Checking Transmission Range Switch (Protege)
G00046324Courtesy of MAZDA MOTORS CORP.
