Fuel Tank Pressure Graphing
WARNING: This page is about a different car, the 2001 Mazda Protege, 2001 Mazda Millenia, 2001 Mazda MX-5 Miata, 2001 Mazda MPV, and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

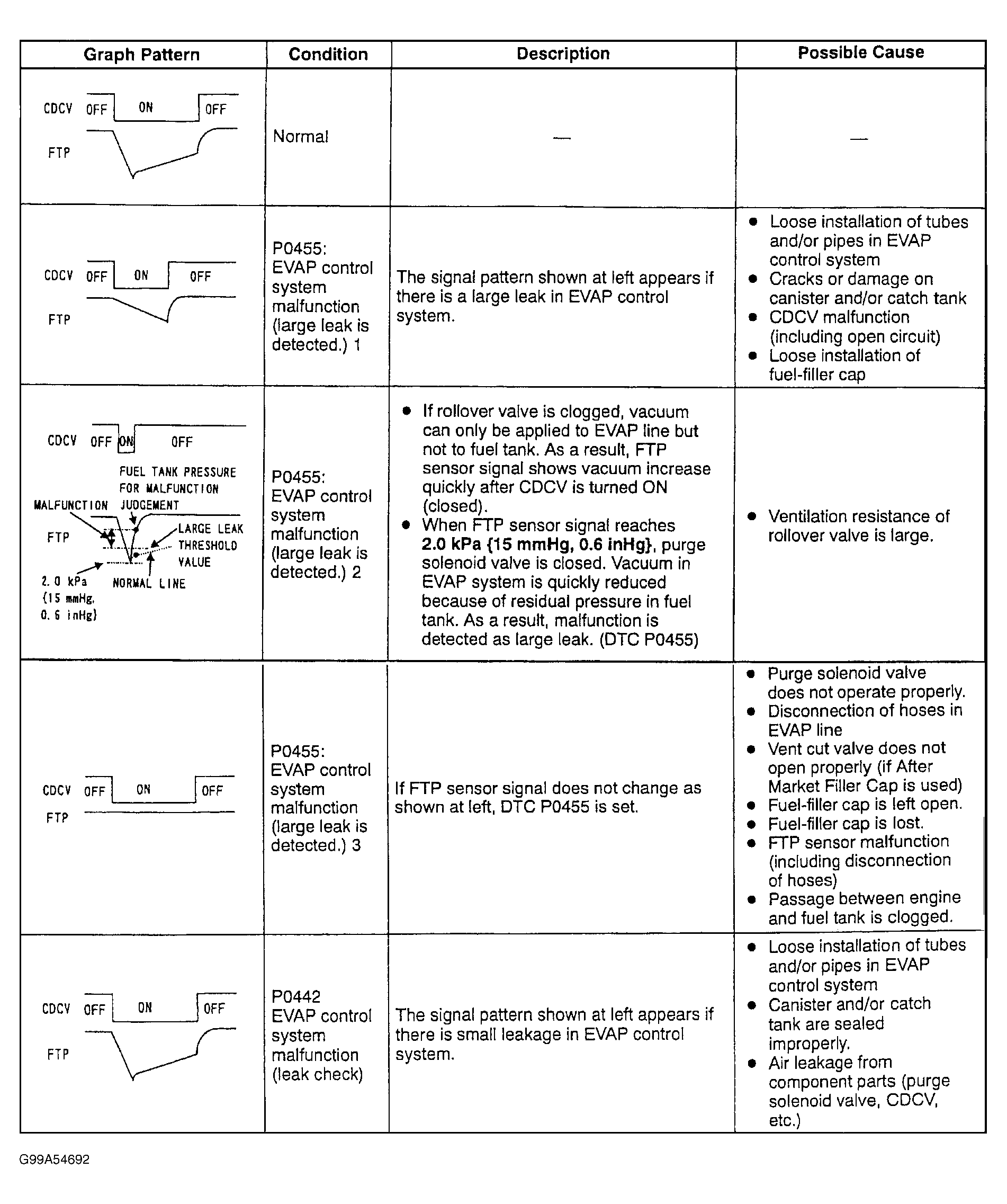

Connect scan tool to DLC-2. DLC-2 is located under left side of instrument panel, left of steering column. Select PID/DATA MONITOR AND RECORD function. Select CDCV and FTP PIDs. Press start to view PIDs. Perform drive mode 4. Press TRIGGER to capture data when starting drive mode. When PCM monitors EVAP system, PID will change from OFF to ON. After test is complete, PID will change to OFF. Wait a few seconds, then press TRIGGER. Select VIEW RECORDING and press TRIGGER. Select CDCV and FTP PIDs. Press GRAPH. Use No. 8 key to advance to point when CDCV was turned on. Compare graph to normal and abnormal patterns. See Fig 1 . Diagnose and repair as necessary.
