Vacuum Hose Diagram(S)
>>
Tribute
Vacuum Hose Diagram(S): Tribute

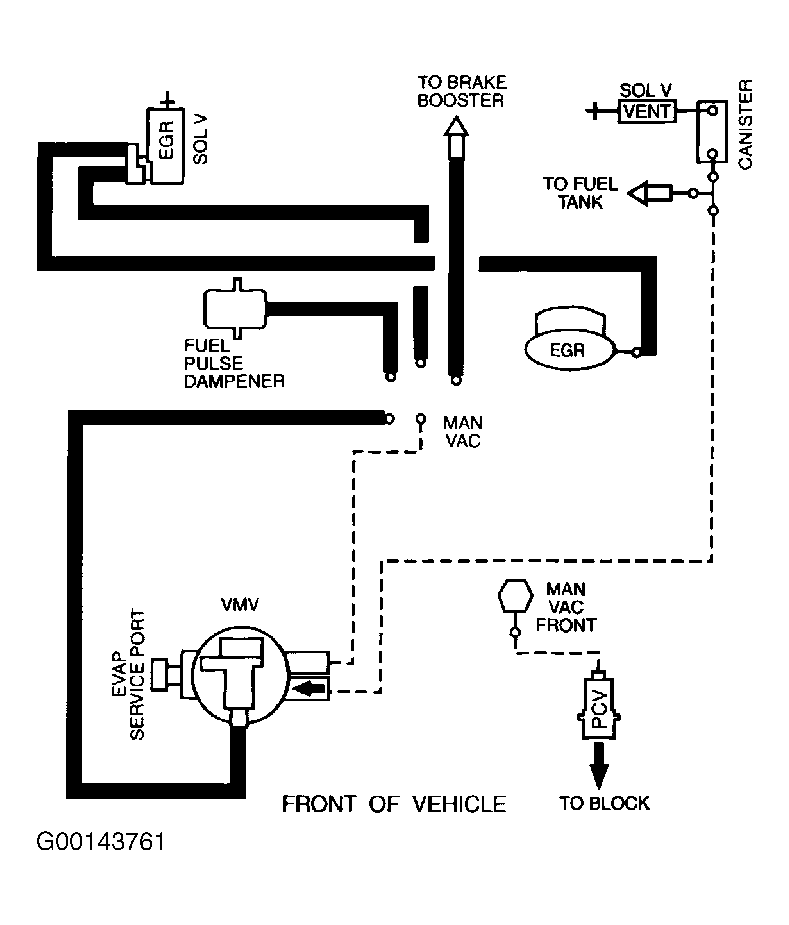

Fig 1: Vacuum Diagram - (Tribute 2.0L)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Vacuum Diagram - (Tribute 3.0L)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
