Removal & Installation (Tribute 3.0L)

  1. Remove air cleaner outlet tube. Remove engine appearance cover. Disconnect throttle and cruise control (if equipped) cable(s) and bracket.
  2. Disconnect EGR vacuum hose and pipe. Disconnect EGR vacuum regulator valve harness connector and vacuum hose. Mark location and disconnect chassis, engine, PCV and vapor management valve vacuum hoses. Disconnect 2 harness connectors attached to left side of upper intake manifold.
  3. Disconnect Power Steering Pressure (PSP) sensor harness connector. Remove bolt and bracket for transaxle vent hose. Remove all 8 upper intake manifold bolts. Remove upper intake manifold. To install, reverse removal procedure. Inspect gaskets and replace if damaged. Tighten upper intake manifold bolts in sequence. See Fig 1. See TORQUE SPECIFICATIONS .

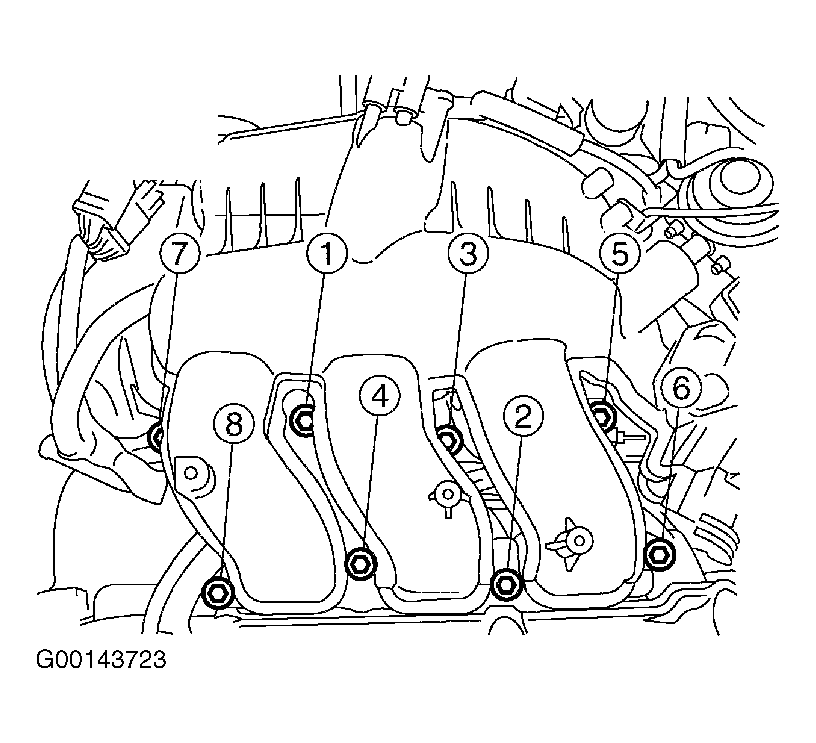

Fig 1: Identifying Upper Intake Manifold Bolt Tightening Sequence (Tribute 3.0L)
G00143723Courtesy of MAZDA MOTORS CORP.
