Crankshaft Position Sensor Air Gap (Except MPV)

Using a feeler gauge, measure air gap between crankshaft pulley and Crankshaft Position (CKP) sensor. See Fig 1 -Fig 5 . If air gap is not .020-.060" (.5-1.5 mm), replace crankshaft pulley or CKP sensor. On Miata, CKP sensor is adjustable. If sensor will not adjust, replace CKP sensor or plate behind crankshaft pulley.

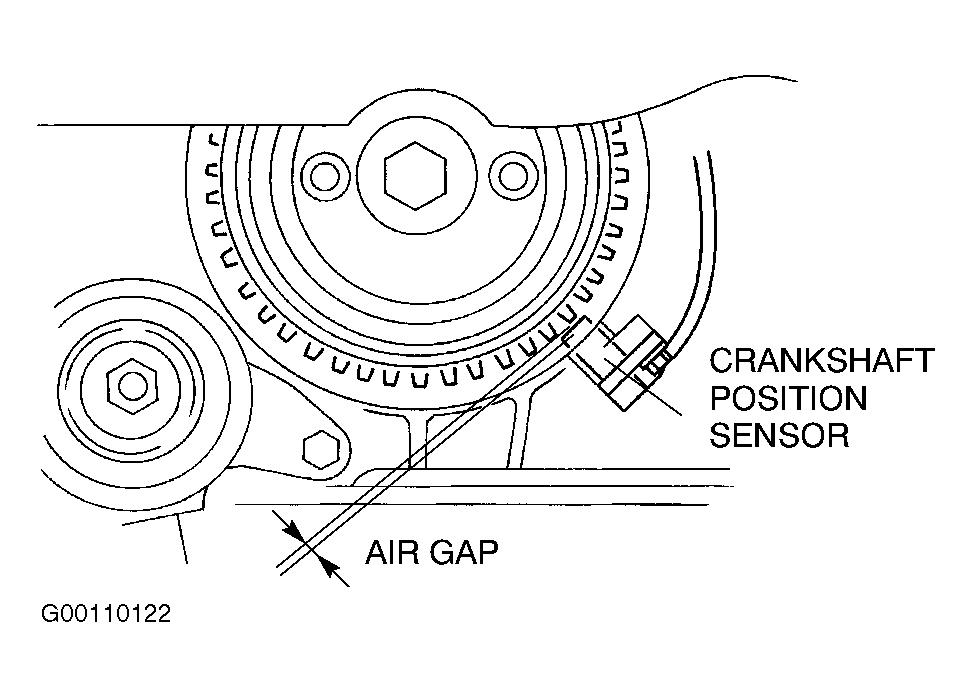

Fig 1: Checking CKP Sensor Air Gap (Miata)

Courtesy of MAZDA MOTORS CORP.

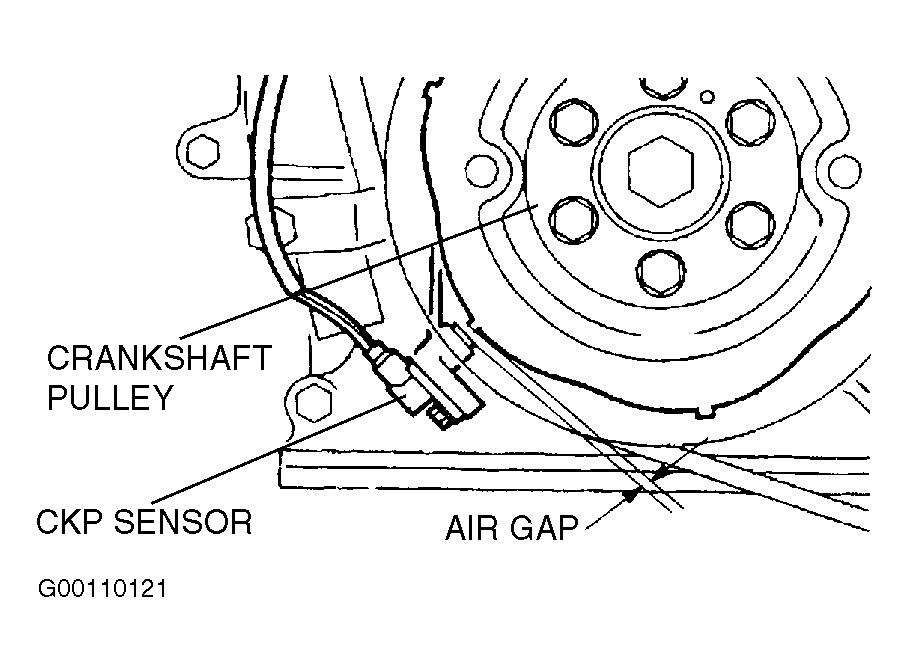

Fig 2: Checking CKP Sensor Air Gap (Millenia 2.3L)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Check CKP Sensor Air Gap (Millenia & 626 2.5L)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Checking CKP Sensor Air Gap (Protege & Protege5)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Checking CKP Sensor Air Gap (626 2.0L)

Courtesy of MAZDA MOTORS CORP.
