Firing Order & Ignition Coils (Millenia 2.3L)

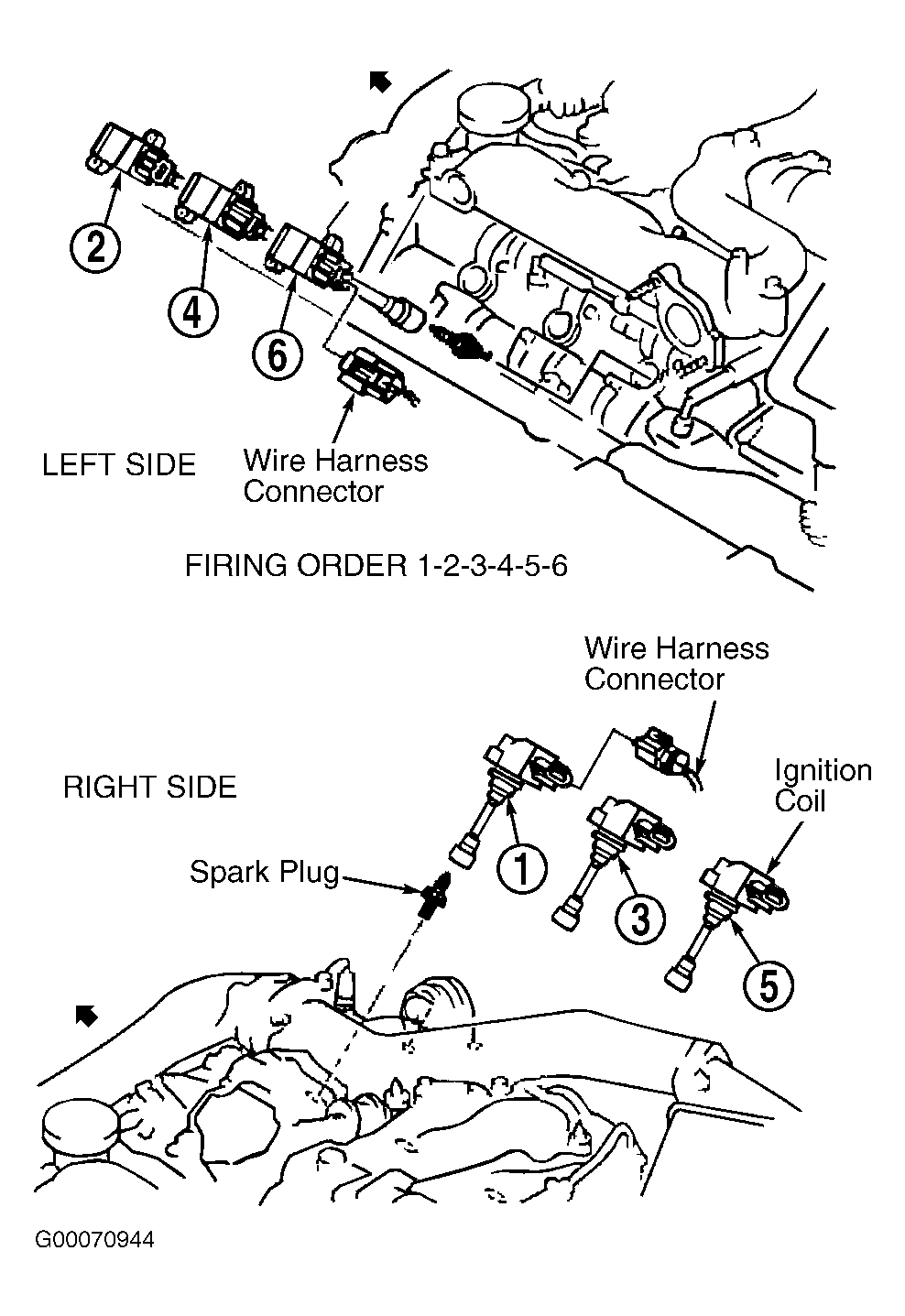

Fig 1: Firing Order & Coils (Millenia 2.3L)

G00070944

Courtesy of MAZDA MOTORS CORP.
