Removal & Installation

  1. Drain the engine cooling system.
  2. Remove the air cleaner outlet tube.
  3. Remove the water pump belt tensioner, if equipped. Refer to WATER PUMP BELT - 3.0L DURATEC (4V) WITH TENSIONER .
  4. Disconnect the three hoses.

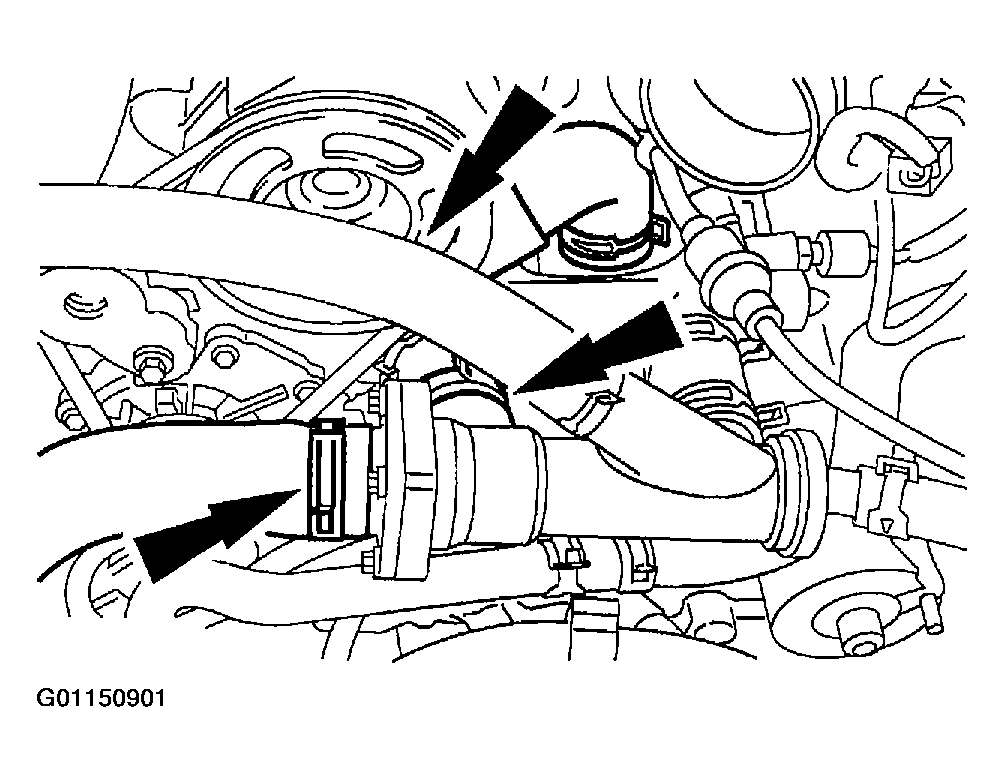

    Fig 1: Disconnecting Hoses
    G01150901Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts and the water pump assembly.

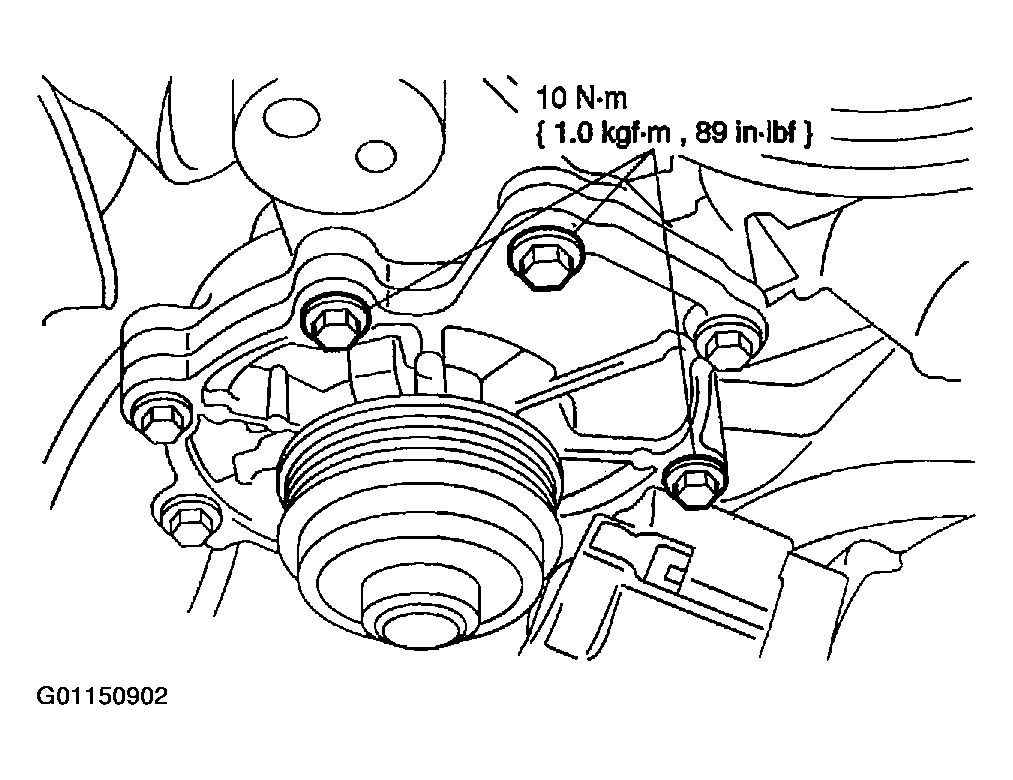

    Fig 2: Removing Water Pump Assembly
    G01150902Courtesy of MAZDA MOTORS CORP.
  6. Separate the water pump from the water pump housing.

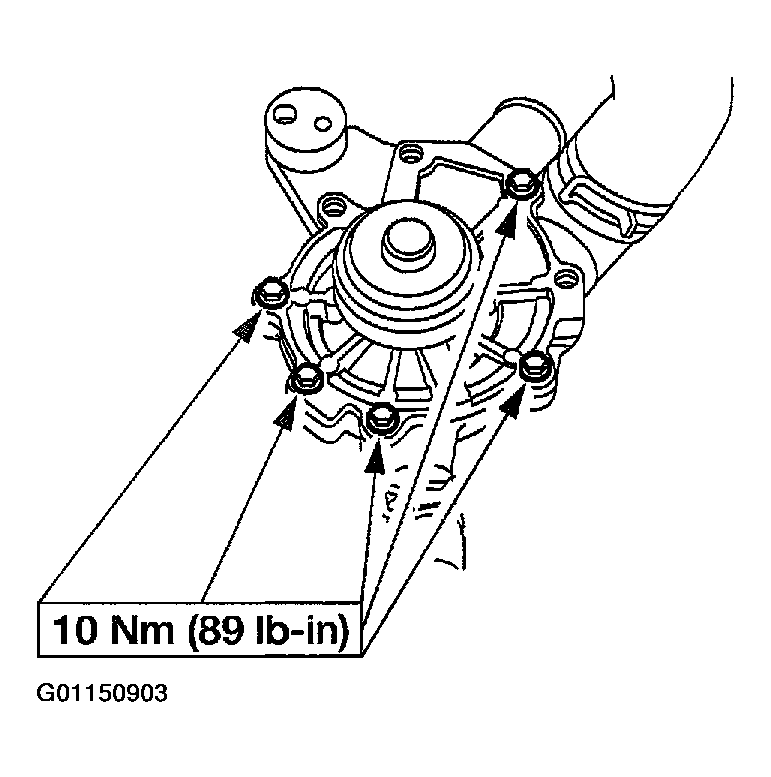

    Fig 3: Removing Water Pump From Water Pump Housing
    G01150903Courtesy of MAZDA MOTORS CORP.
    7. NOTE: Clean and inspect the sealing surfaces.
  7. To install, reverse the removal procedure.
