Valve Seals: Removal

  1. Remove the valve spring. Refer to VALVE SPRING .
    2. NOTE: Camshaft removed for clarity.

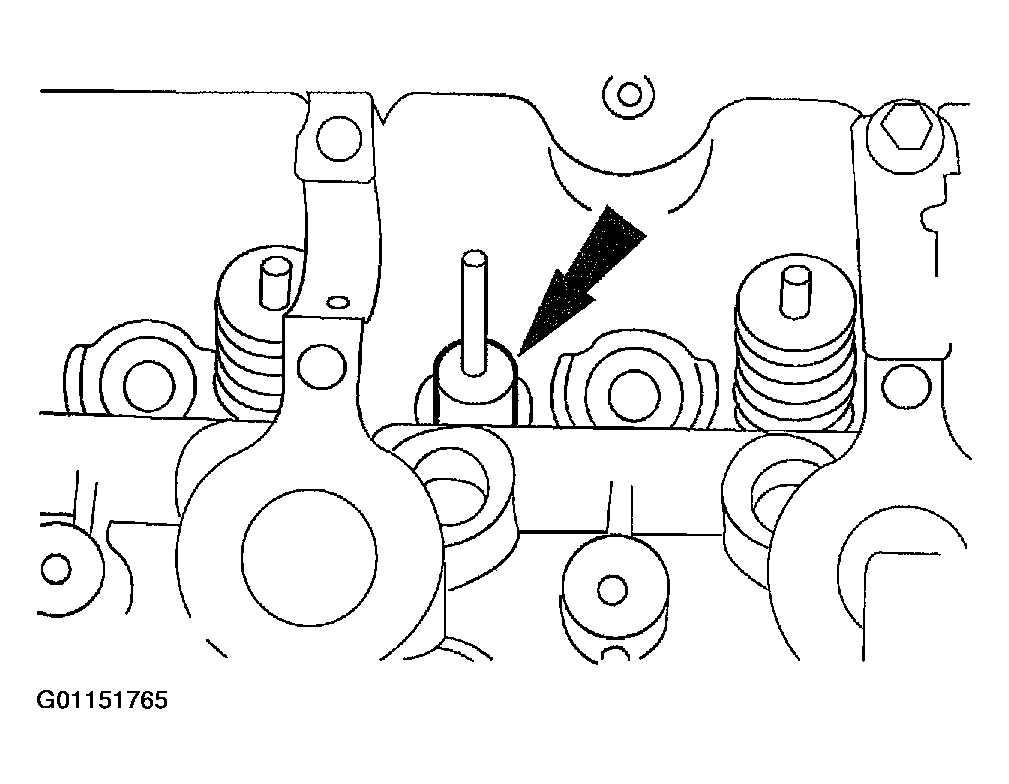

    Fig 1: Removing Valve Seal
    G01151765Courtesy of MAZDA MOTORS CORP.
  2. Remove the valve seal.
