Valve Seals: Installation

    NOTE: Lubricate the valve guide with SAE 5W-20 motor oil

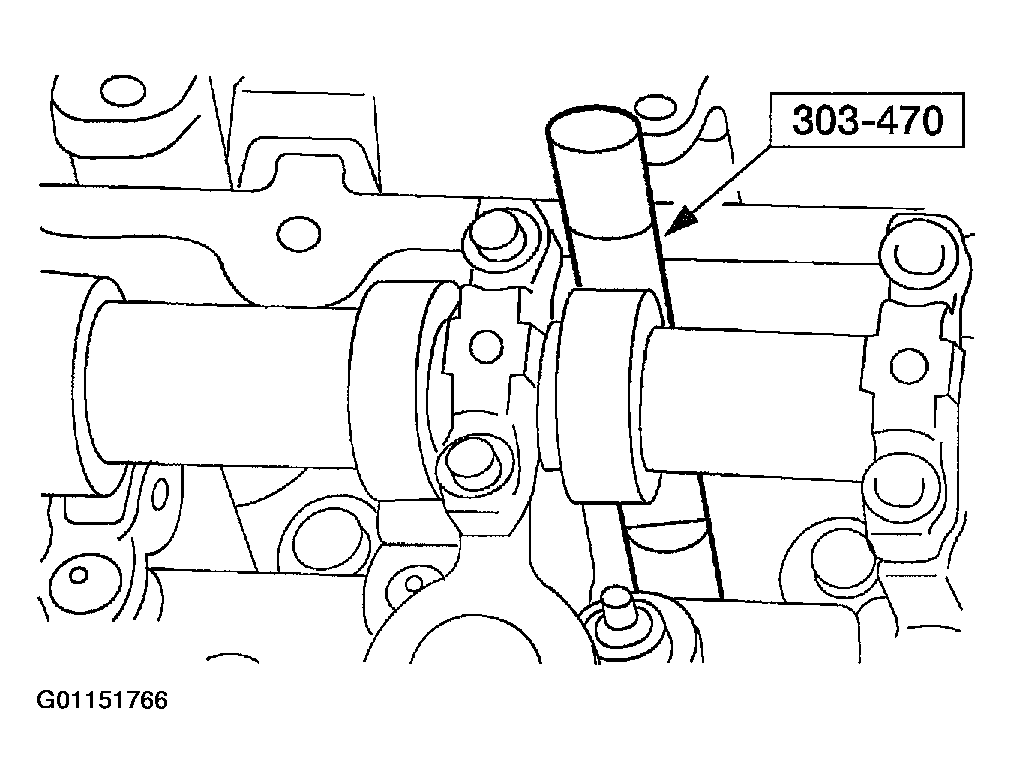

    Fig 1: Installing Valve Seal
    G01151766Courtesy of MAZDA MOTORS CORP.
  1. Using the special tool, install the valve seal.
  2. Install the valve spring. Refer to VALVE SPRING .
