Valve Cover - LH: Removal

  1. Remove the three nuts and the engine appearance cover.

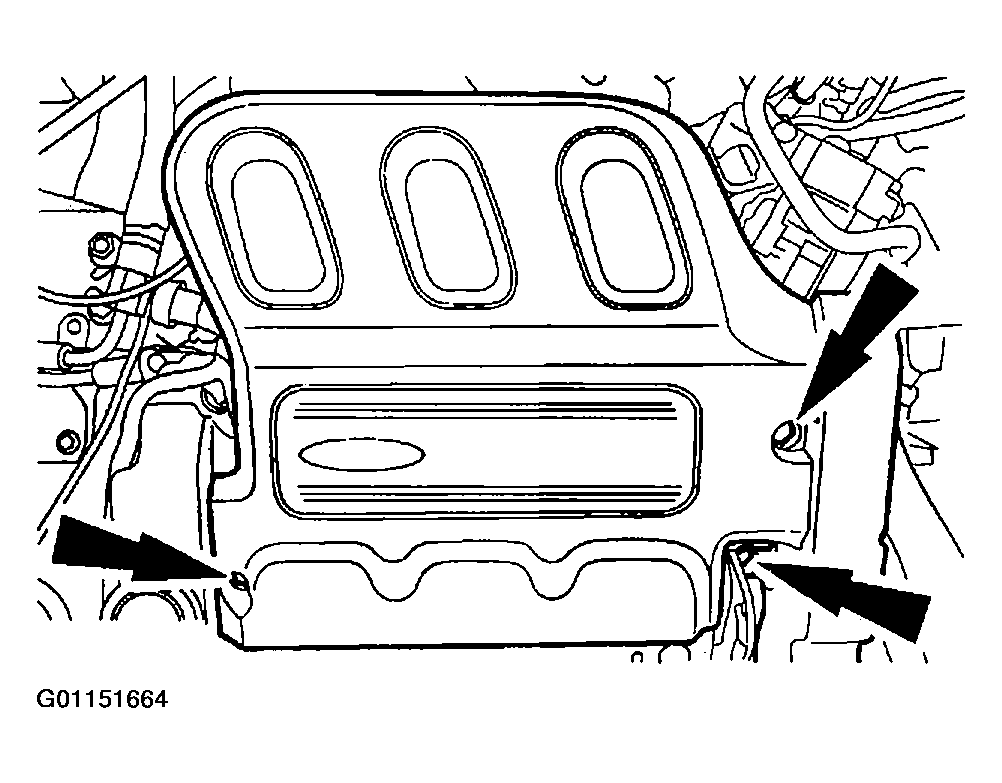

    Fig 1: Removing Engine Appearance Cover
    G01151664Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the crankcase ventilation tube from the valve cover.

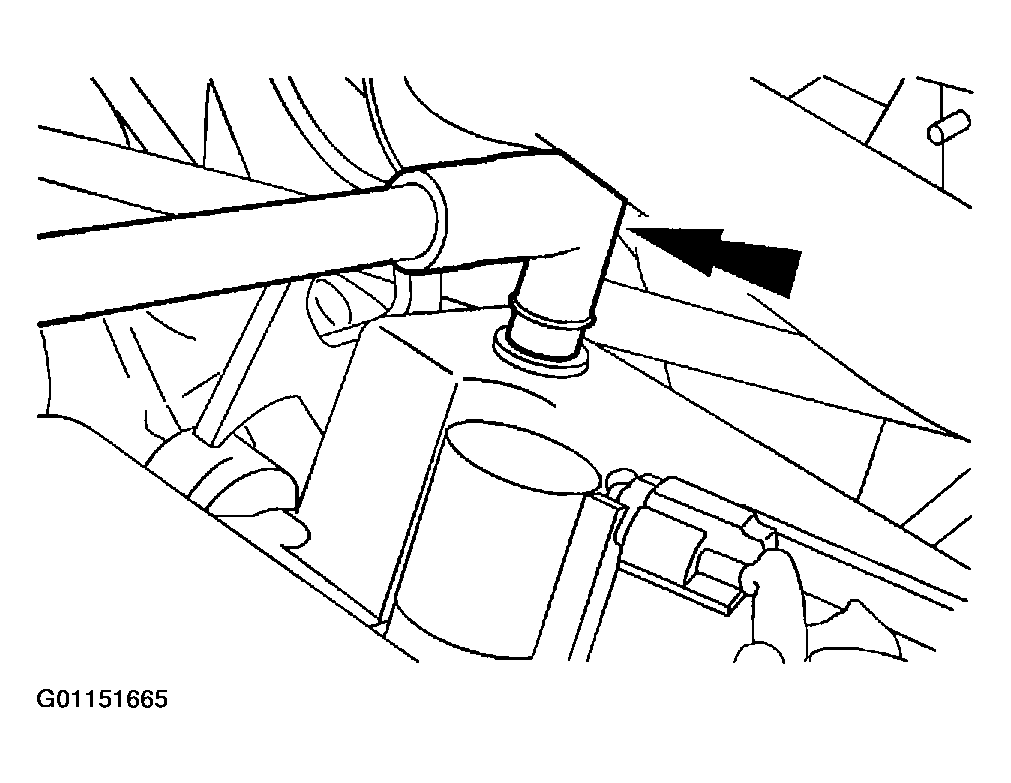

    Fig 2: Disconnecting Crankcase Ventilation Tube
    G01151665Courtesy of MAZDA MOTORS CORP.
  3. Remove the three LH coil-on-plugs.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the coil.

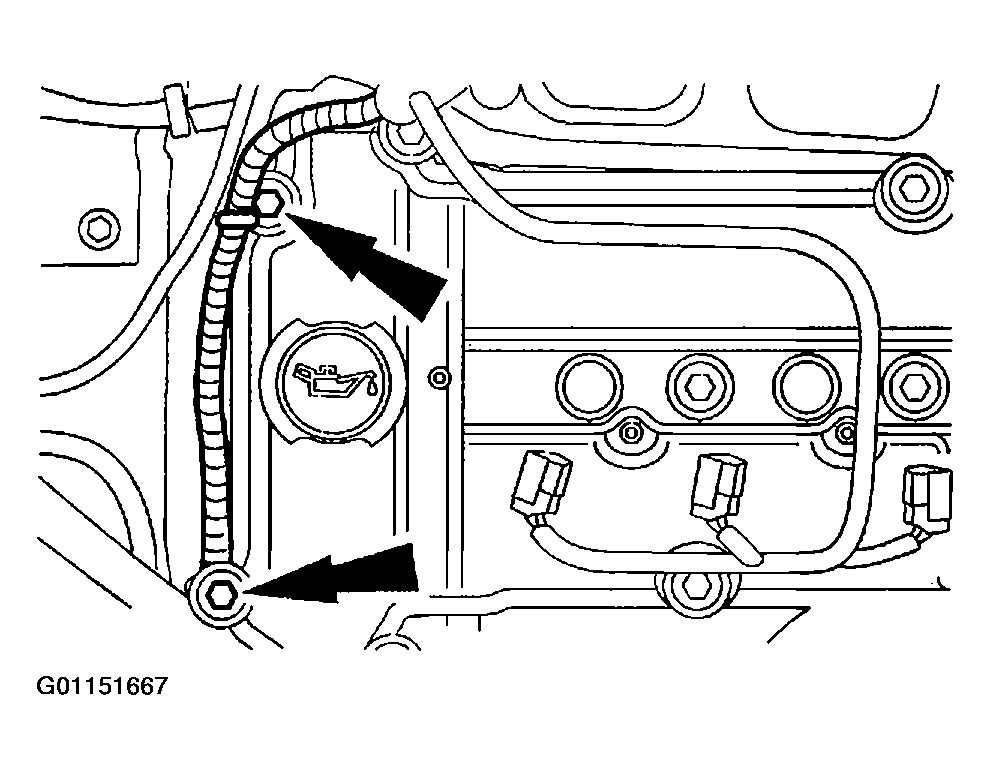

      Fig 3: Removing LH Coil-On-Plugs
      G01151667Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the wiring harness from the valve cover studs.

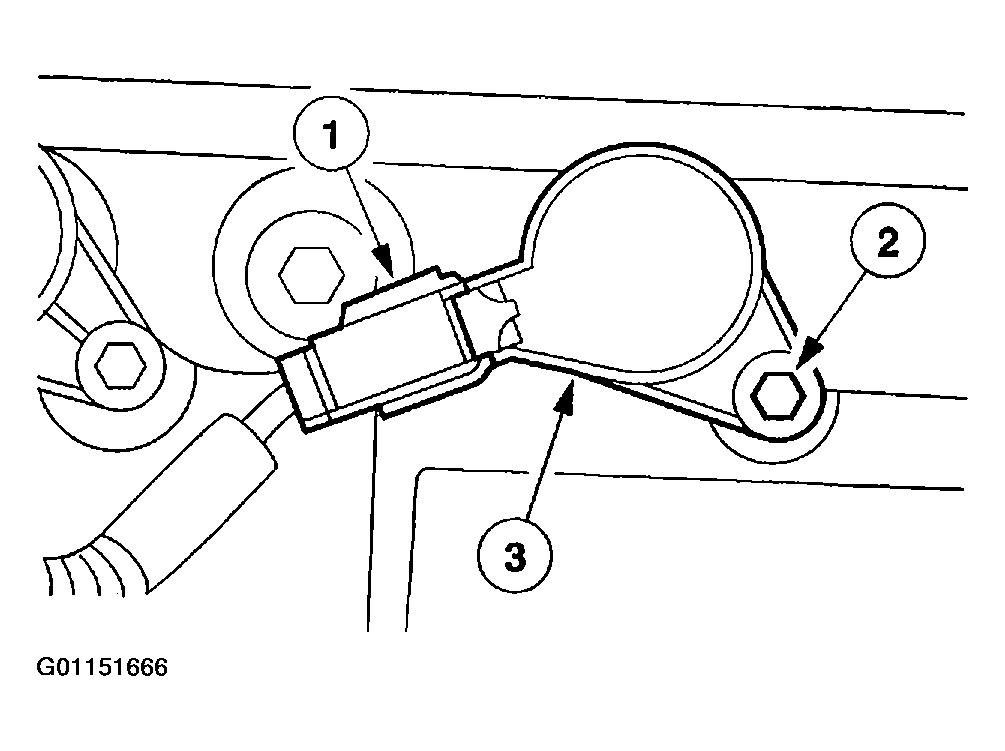

    Fig 4: Disconnecting Wiring Harness From Valve Cover Studs
    G01151666Courtesy of MAZDA MOTORS CORP.
  5. Remove the engine lift bracket.

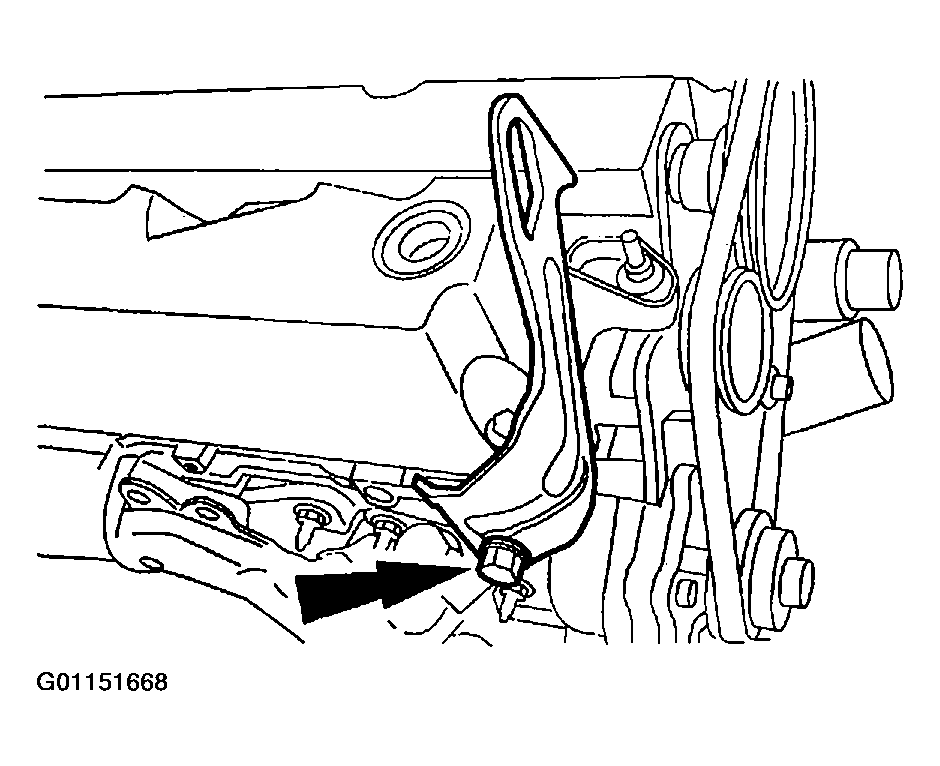

    Fig 5: Removing Engine Lift Bracket
    G01151668Courtesy of MAZDA MOTORS CORP.
  6. Position the power steering hose aside.
    • Remove the bolt.
    Fig 6: Removing Power Steering Hose
    G01151670Courtesy of MAZDA MOTORS CORP.
  7. Remove the bolts, studs and the LH valve cover.
    • Remove and discard the gasket.

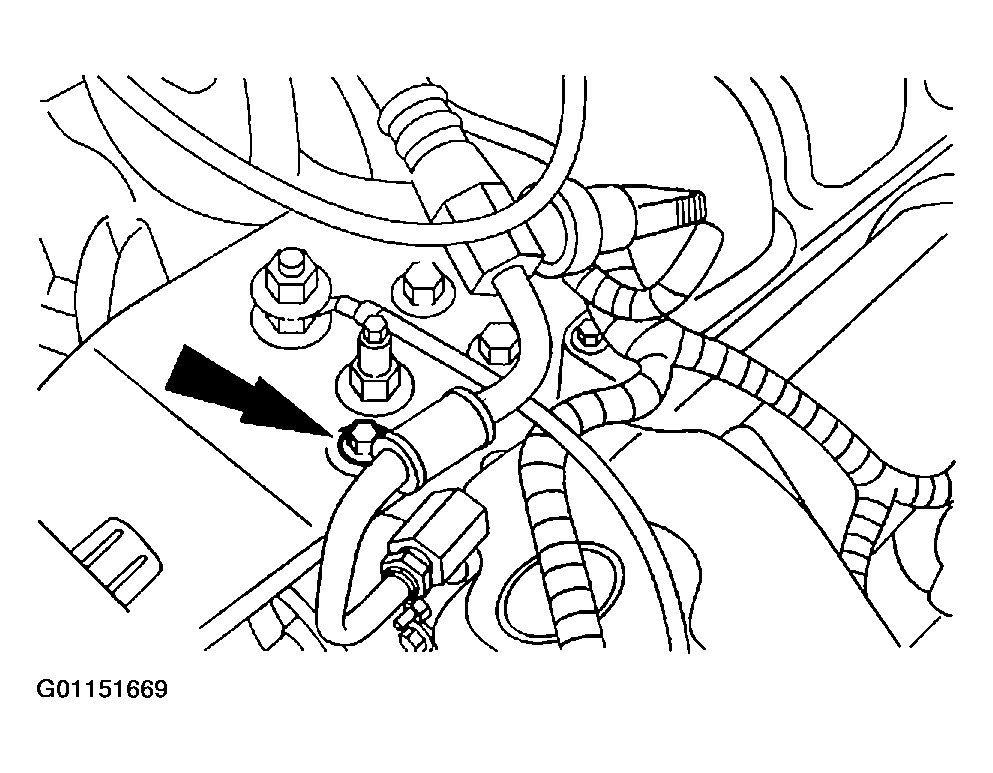

    Fig 7: Removing LH Valve Cover
    G01151669Courtesy of MAZDA MOTORS CORP.
