Removal & Installation

  1. Drain the engine cooling system.
    2. NOTE: The appearance cover is shown removed for clarity.

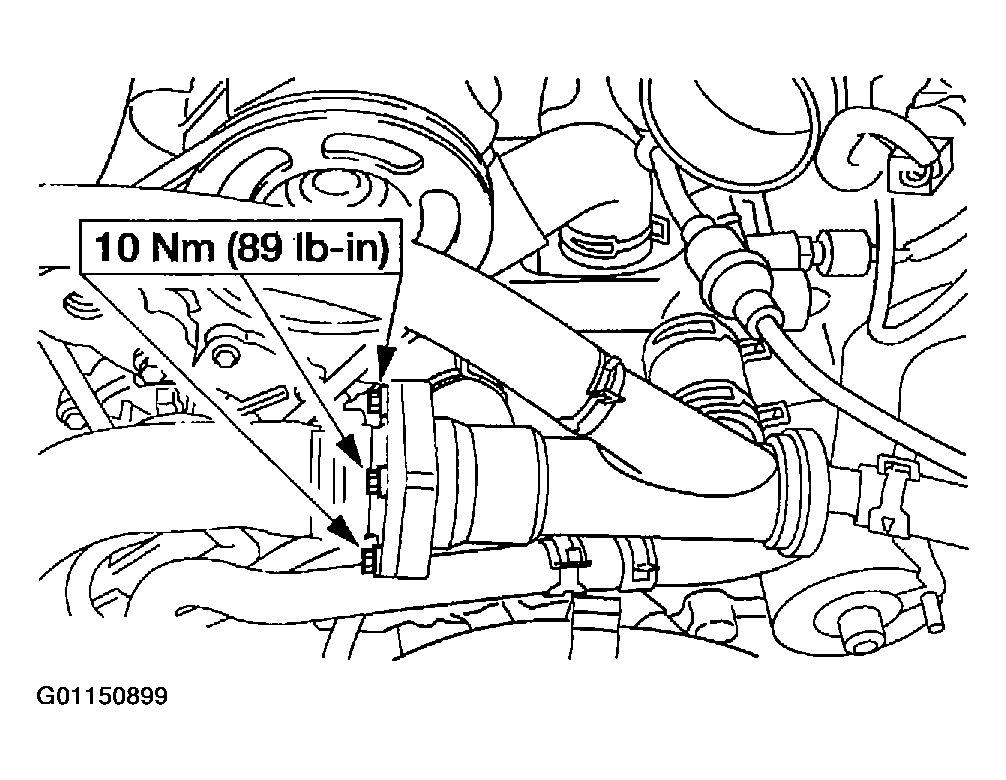

    Fig 1: Separating Thermostat Housing
    G01150899Courtesy of MAZDA MOTORS CORP.
  2. Separate the thermostat housing.
  3. Remove the thermostat and the O-ring seal from the thermostat housing.

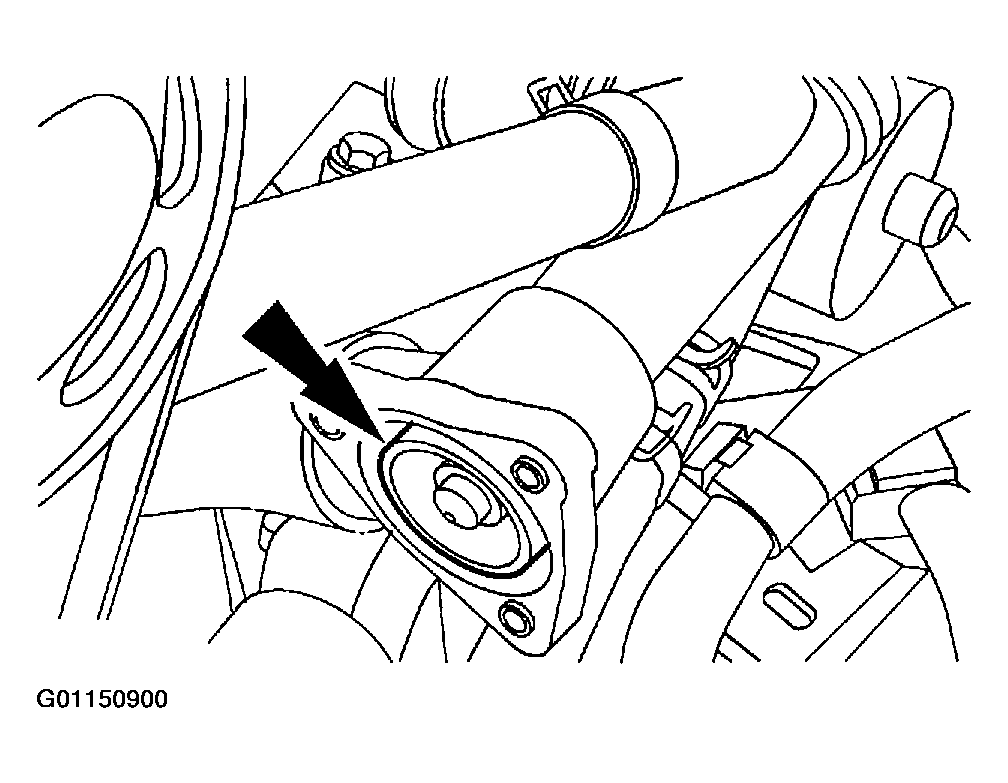

    Fig 2: Removing Thermostat & O-Ring Seal
    G01150900Courtesy of MAZDA MOTORS CORP.
    4. NOTE: Clean and inspect the sealing surfaces.
  4. To install reverse the removal procedure.
