Removal & Installation

  1. Raise and support the vehicle.
  2. Remove and discard the nuts.
    1. Discard the gasket.

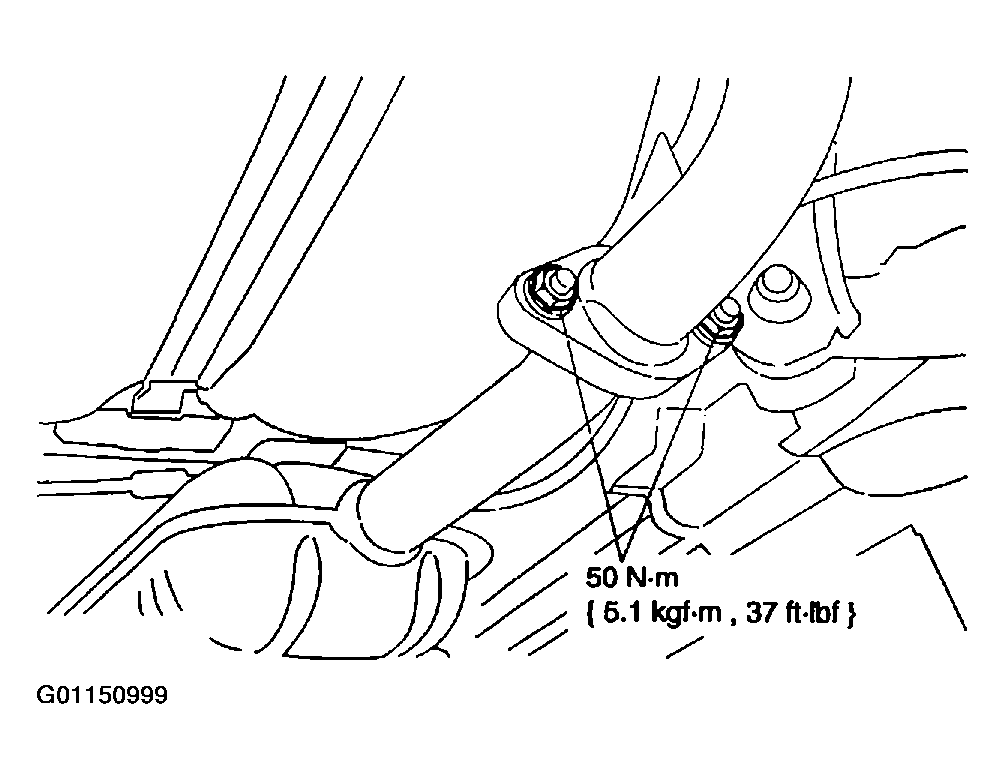

    Fig 1: Removing Nuts
    G01150999Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the resonator from the hanger and remove the resonator.

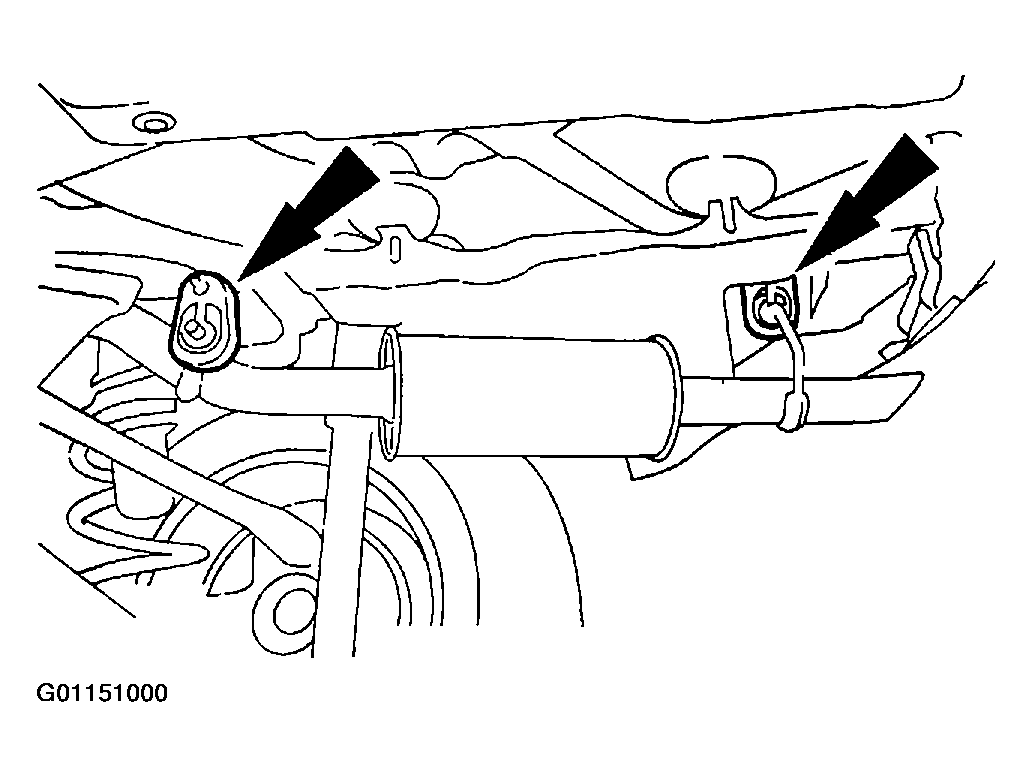

    Fig 2: Removing Resonator
    G01151000Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
    • Install a new gasket.
    • Install new nuts.
