Engine Mechanical - 3.0L: Piston: Disassembly

Remove the top compression ring.

Fig 1: Removing Top Compression Ring
Courtesy of MAZDA MOTORS CORP.
Remove the second compression ring.

Fig 2: Removing Second Compression Ring
Courtesy of MAZDA MOTORS CORP.
Remove the first oil control ring.

Fig 3: Removing First Oil Control Ring
Courtesy of MAZDA MOTORS CORP.
Remove the oil control spacer ring.

Fig 4: Removing Oil Control Spacer Ring
Courtesy of MAZDA MOTORS CORP.
Remove the second oil control ring.

Fig 5: Removing Second Oil Control Ring
Courtesy of MAZDA MOTORS CORP.
Remove the clips.

Fig 6: Removing Clips
Courtesy of MAZDA MOTORS CORP.

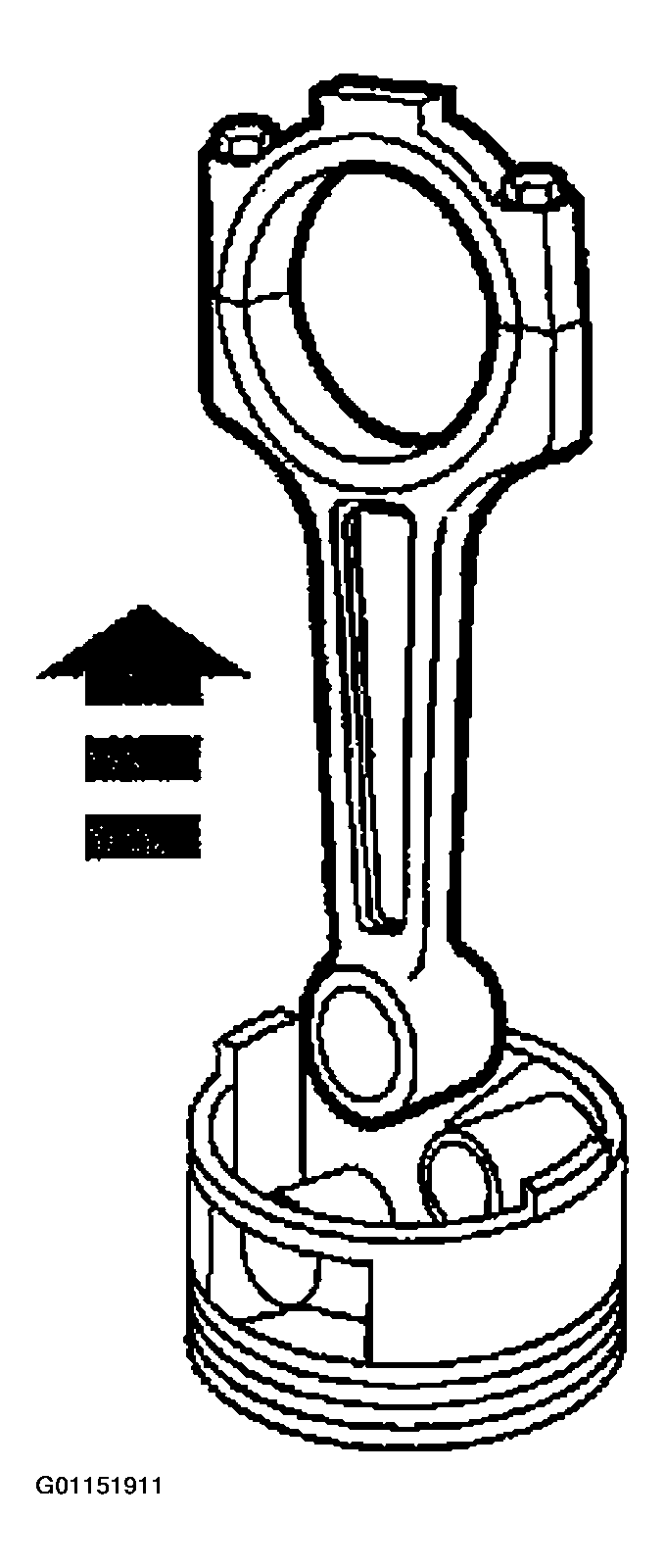

Remove the piston pin and the connecting rod from the piston.

Fig 7: Removing Piston Pin & Connecting Rod
Courtesy of MAZDA MOTORS CORP.
Clean and inspect the connecting rod and the piston. Refer to PISTON - INSPECTION .
