Oil Pump: Removal

  1. Remove the timing drive components. Refer to TIMING DRIVE COMPONENTS .
  2. Remove the oil pump screen cover and tube. Refer to OIL PUMP SCREEN & PICKUP TUBE .
  3. Remove the bolts in the indicated sequence and remove the oil pump.

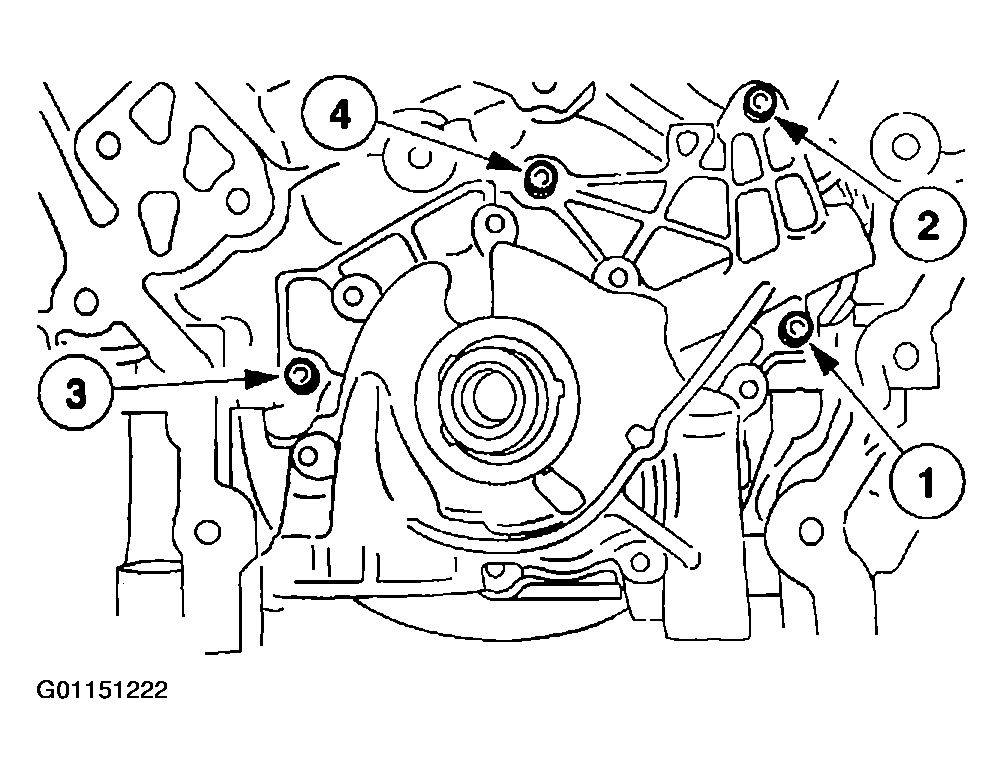

    4. Fig 1: Oil Pump Bolt Removal Sequence
    G01151222Courtesy of MAZDA MOTORS CORP.
