Oil Pump: Installation

  1. Position the oil pump and install the bolts in the sequence shown.

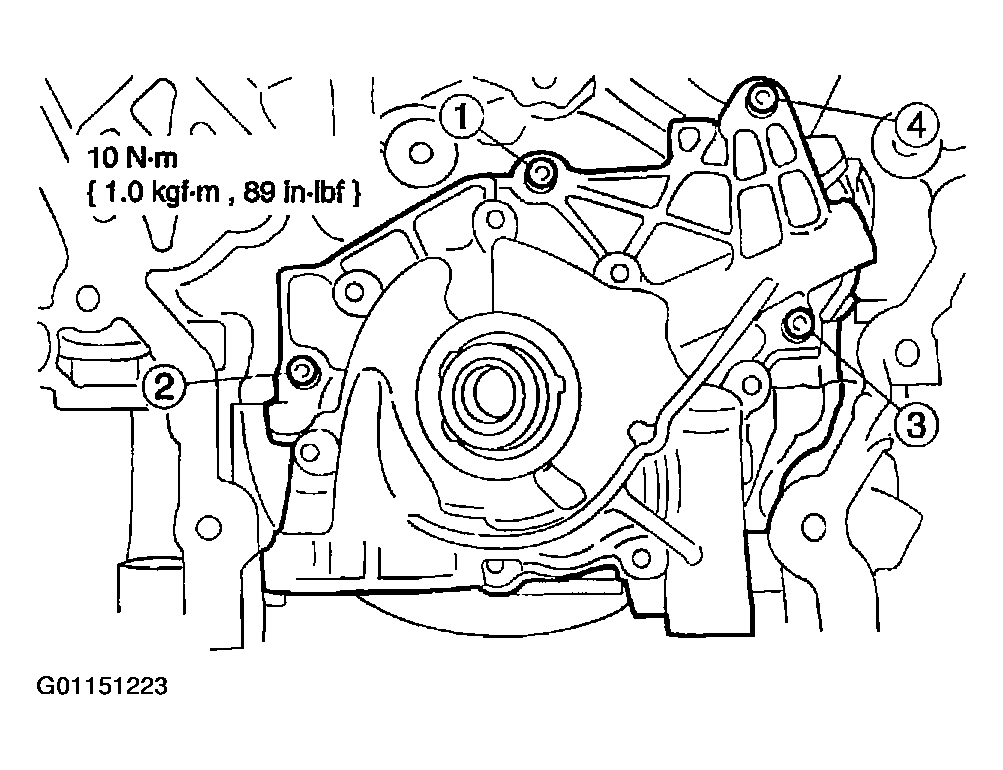

    Fig 1: Oil Pump Bolts Tightening Sequence
    G01151223Courtesy of MAZDA MOTORS CORP.
  2. Install the oil pump screen cover and tube. Refer to OIL PUMP SCREEN & PICKUP TUBE .
  3. Install the timing drive components. Refer to TIMING DRIVE COMPONENTS .
