Oil Pump Screen & Pickup Tube: Removal

  1. Remove the oil pan. Refer to OIL PAN .
  2. Remove the nut, bolts and the oil pump screen and pick-up tube.

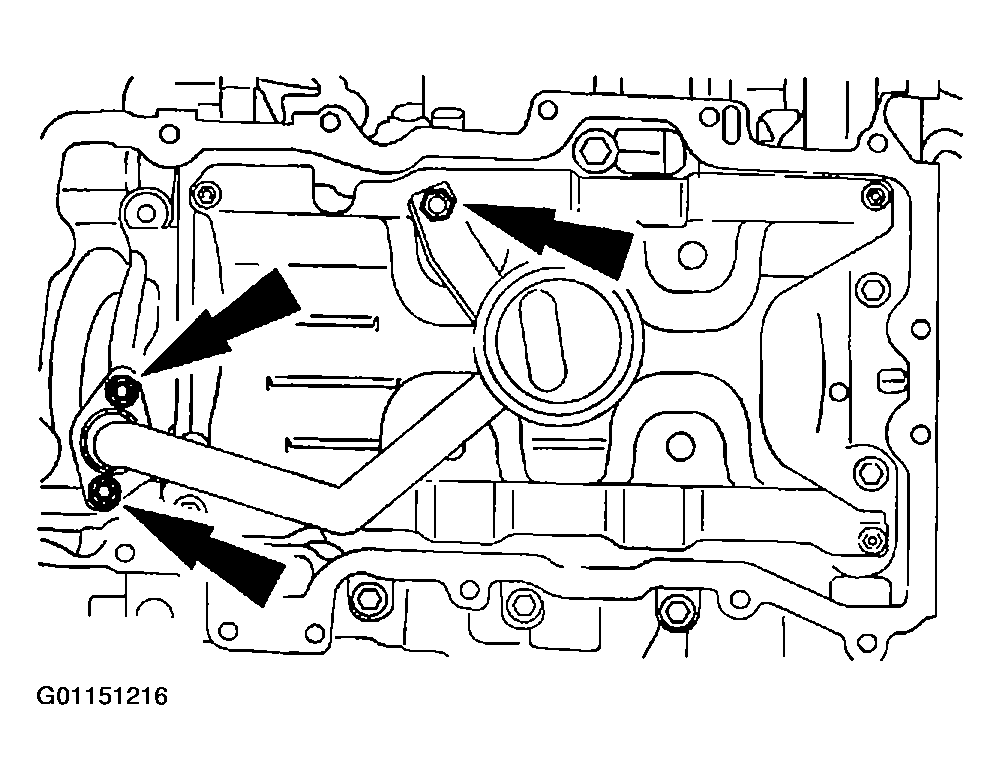

    Fig 1: Removing The Oil Pump Screen & Pick-Up Tube
    G01151216Courtesy of MAZDA MOTORS CORP.
  3. Remove and inspect the O-ring seal. Discard if damaged.
    Fig 2: Inspecting O-Ring Seal
    G01151217Courtesy of MAZDA MOTORS CORP.
