Removal & Installation

  1. Raise and support the vehicle.
  2. Remove the splash shield.
    Fig 1: Removing Splash Shield
    G01151201Courtesy of MAZDA MOTORS CORP.
    3. NOTE: The A/C compressor has been removed for clarity.

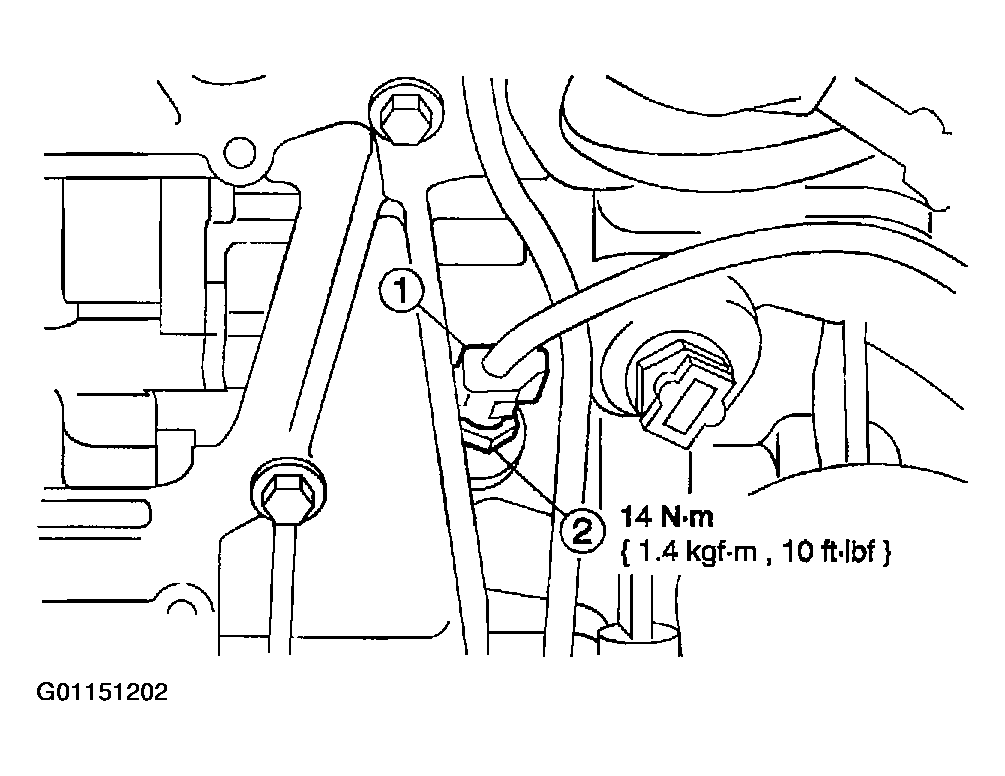

    Fig 2: Removing Oil Pressure Sender
    G01151202Courtesy of MAZDA MOTORS CORP.
  3. Remove the oil pressure sender.
    1. Disconnect the electrical connector.
    2. Remove the sender.
  4. To install, reverse the removal procedure.
