Oil Pan: Removal

  1. Remove the flexible exhaust pipe. Refer to EXHAUST FLEXIBLE PIPE .
  2. Disconnect the downstream catalyst monitor sensor.

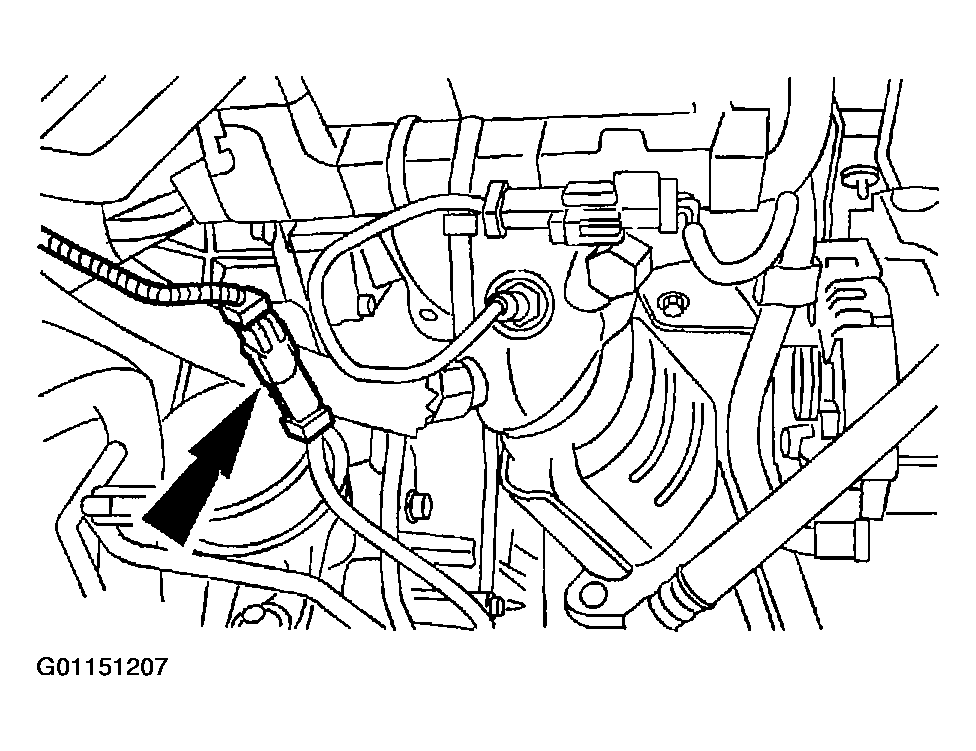

    Fig 1: Disconnecting Downstream Catalyst Monitor Sensor
    G01151207Courtesy of MAZDA MOTORS CORP.
  3. Drain the engine oil.
    • Install a new drain plug gasket and tighten the drain plug.

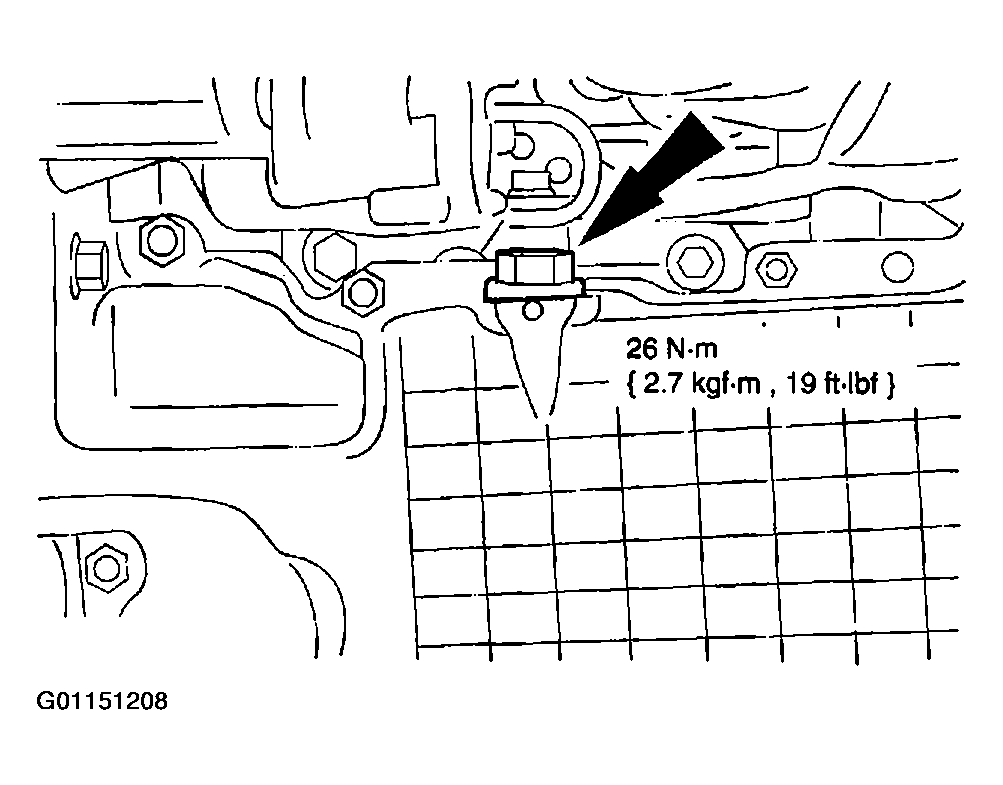

      Fig 2: Draining Engine Oil
      G01151208Courtesy of MAZDA MOTORS CORP.
  4. Remove the 15 bolts.
    Fig 3: Identifying Oil Pan Bolts
    G01151209Courtesy of MAZDA MOTORS CORP.
  5. Remove the three bolts and the oil pan.

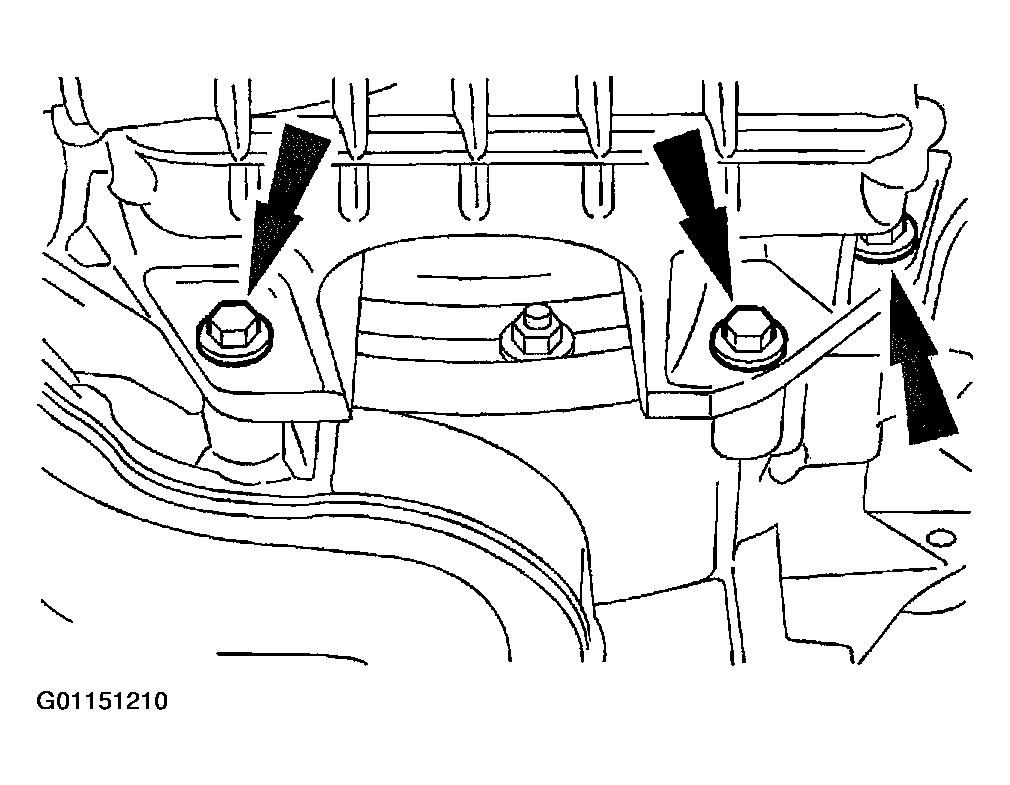

    Fig 4: Identifying Oil Pan-To-Block Bolts
    G01151210Courtesy of MAZDA MOTORS CORP.
