Oil Pan Baffle: Removal

  1. Remove the oil pump screen cover and tube. Refer to OIL PUMP SCREEN & PICKUP TUBE .
  2. Remove the nuts and the oil pan baffle.

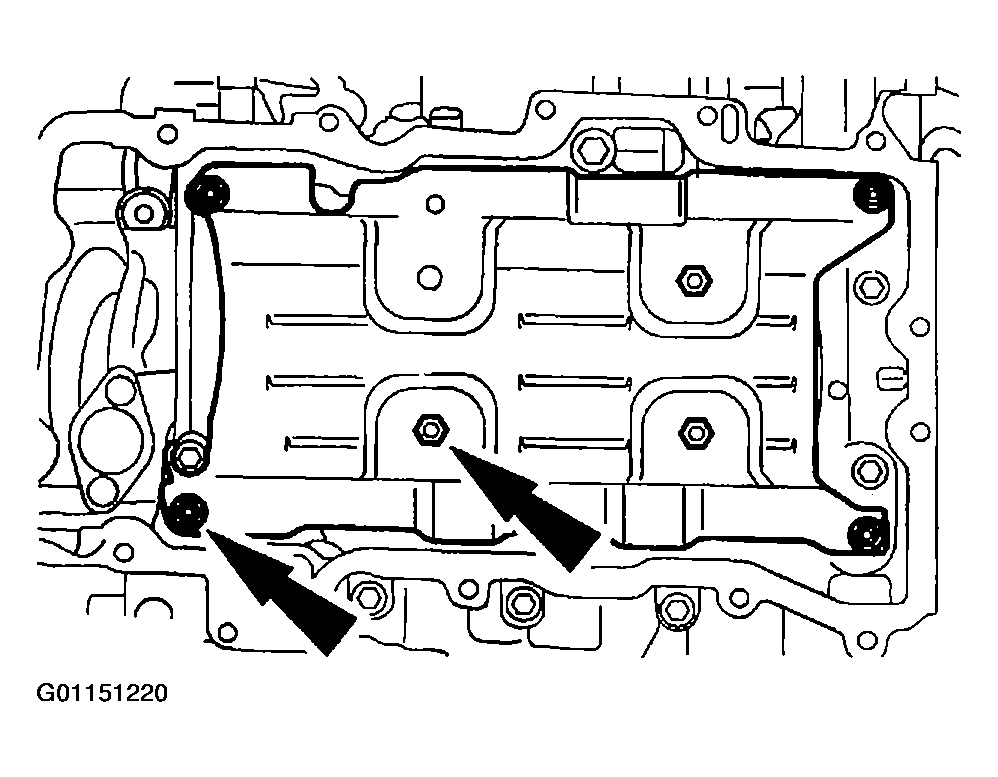

    Fig 1: Removing Nuts & Oil Pan Baffle
    G01151220Courtesy of MAZDA MOTORS CORP.
