Oil Pan Baffle: Installation

  1. Position the oil pan baffle and install the nuts.
    1. Tighten the nuts in two stages.
    2. Stage 1: Tighten to 5 Nm (44 lb-in).
    3. Stage 2: Tighten 45 degrees.

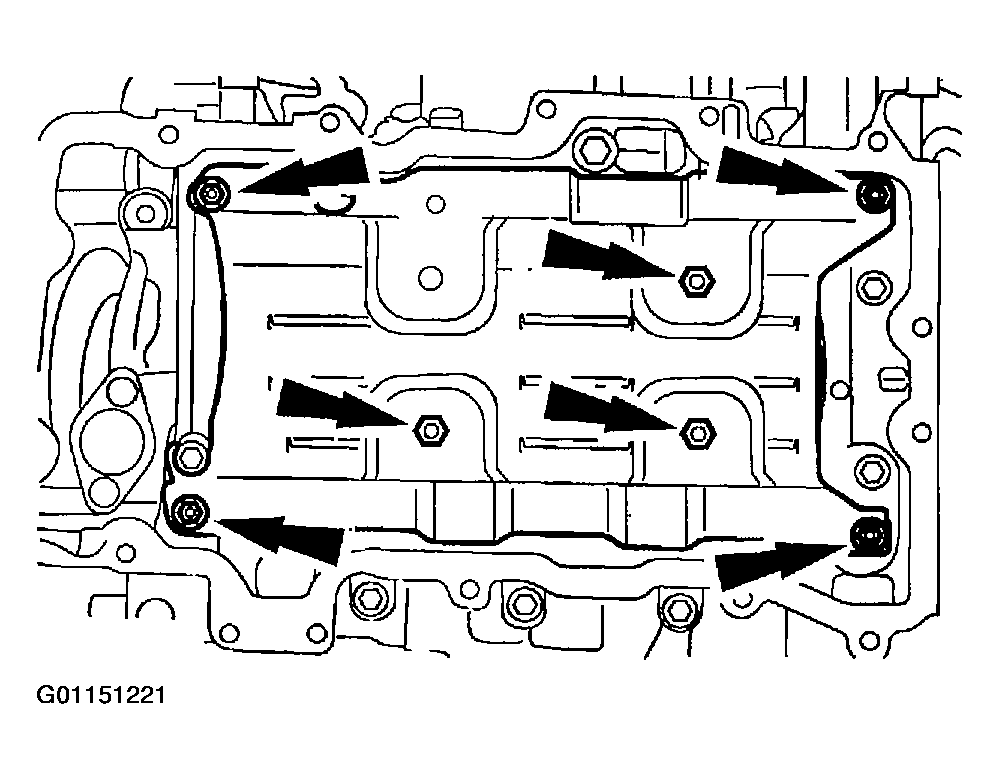

    Fig 1: Installing Oil Pan Baffle
    G01151221Courtesy of MAZDA MOTORS CORP.
  2. Install the oil pump screen cover and tube. Refer to OIL PUMP SCREEN & PICKUP TUBE .
