Removal & Installation

  1. Remove the oil level indicator.

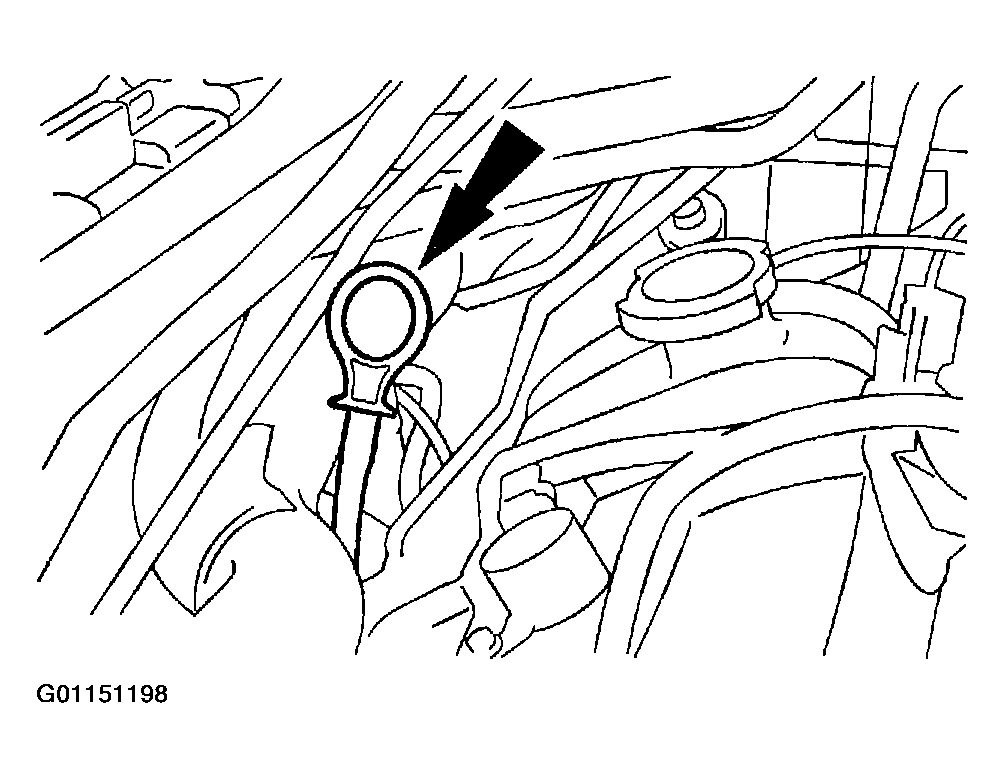

    Fig 1: Removing Oil Level Indicator
    G01151198Courtesy of MAZDA MOTORS CORP.
  2. Remove the oil level indicator tube.
    1. Remove the stud.
    2. Remove the oil level indicator tube.

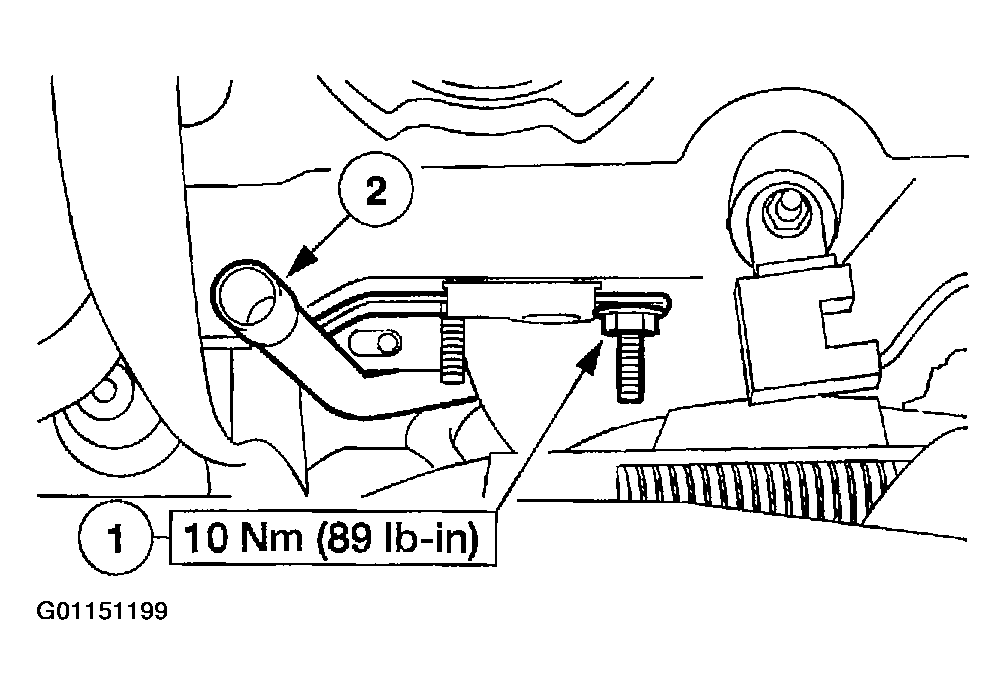

    Fig 2: Removing Oil Level Indicator Tube
    G01151199Courtesy of MAZDA MOTORS CORP.
  3. Inspect the O-ring seal at the end of the oil level indicator tube and install a new O-ring seal if necessary.
    Fig 3: Inspecting Oil Level Indicator Tube O-ring Seal
    G01151200Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
    1. Lubricate the O-ring seal with SAE 5W-30 motor oil.
