Removal & Installation

  1. Drain the engine coolant.
  2. Remove the oil pan drain bolt and drain engine oil.

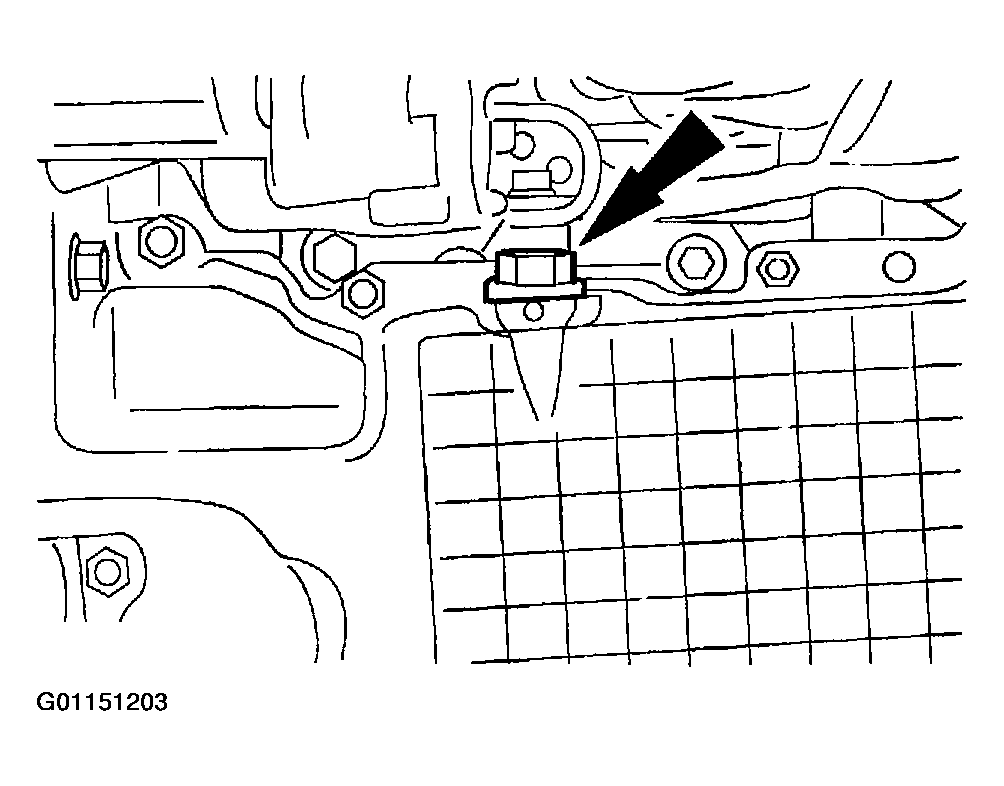

    Fig 1: Removing Oil Pan Drain Bolt
    G01151203Courtesy of MAZDA MOTORS CORP.
  3. Remove the oil filter.
    Fig 2: Removing Oil Filter
    G01151204Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the coolant hoses at the cooler.

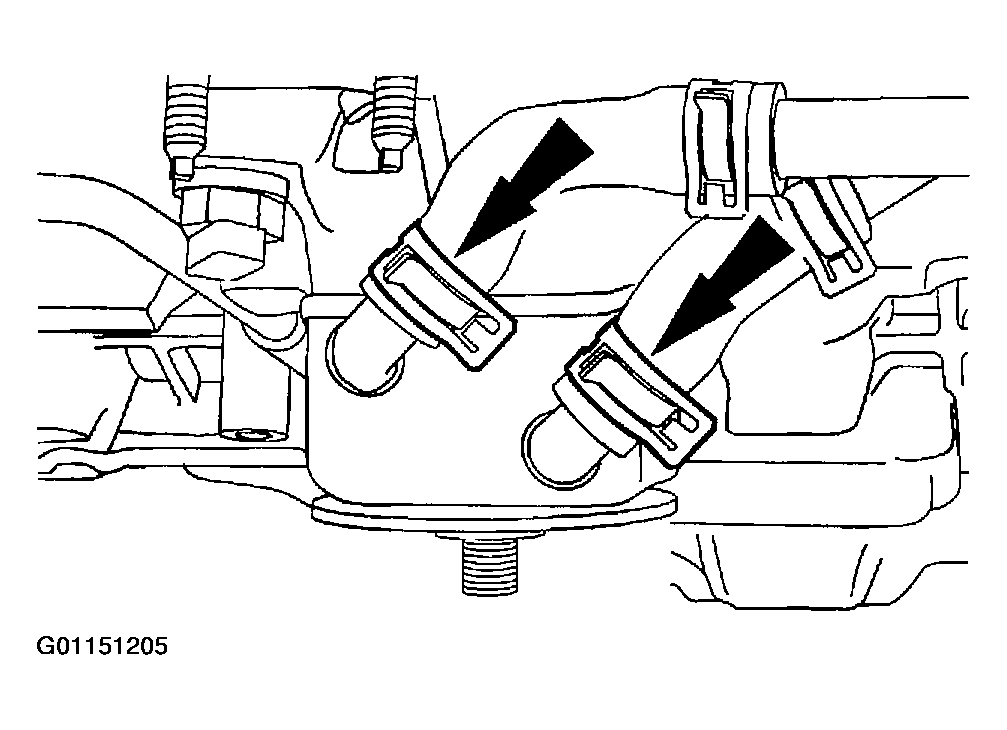

    Fig 3: Removing Coolant Hoses
    G01151205Courtesy of MAZDA MOTORS CORP.
  5. Remove the oil cooler.

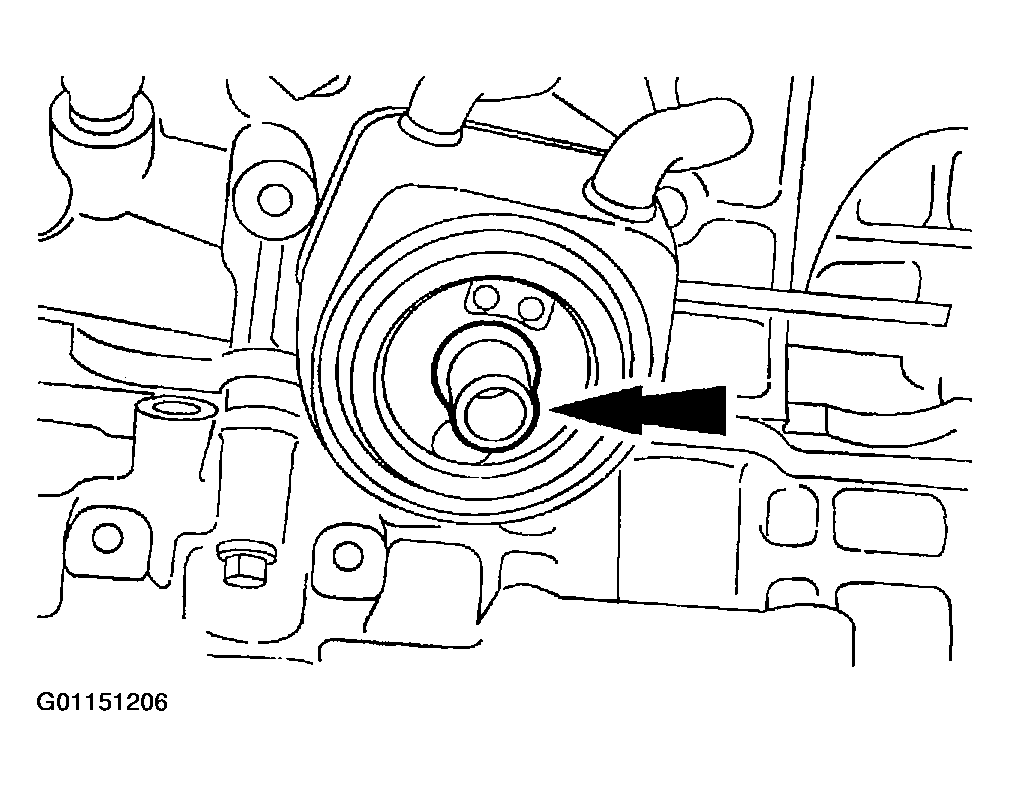

    Fig 4: Removing Oil Cooler
    G01151206Courtesy of MAZDA MOTORS CORP.
  6. To install, reverse the removal procedure.
    1. Fill the crankcase with SAE 5W-20 motor oil.
