Muffler And Tailpipe

  1. Raise and support the vehicle.
  2. Remove the U-bolt.

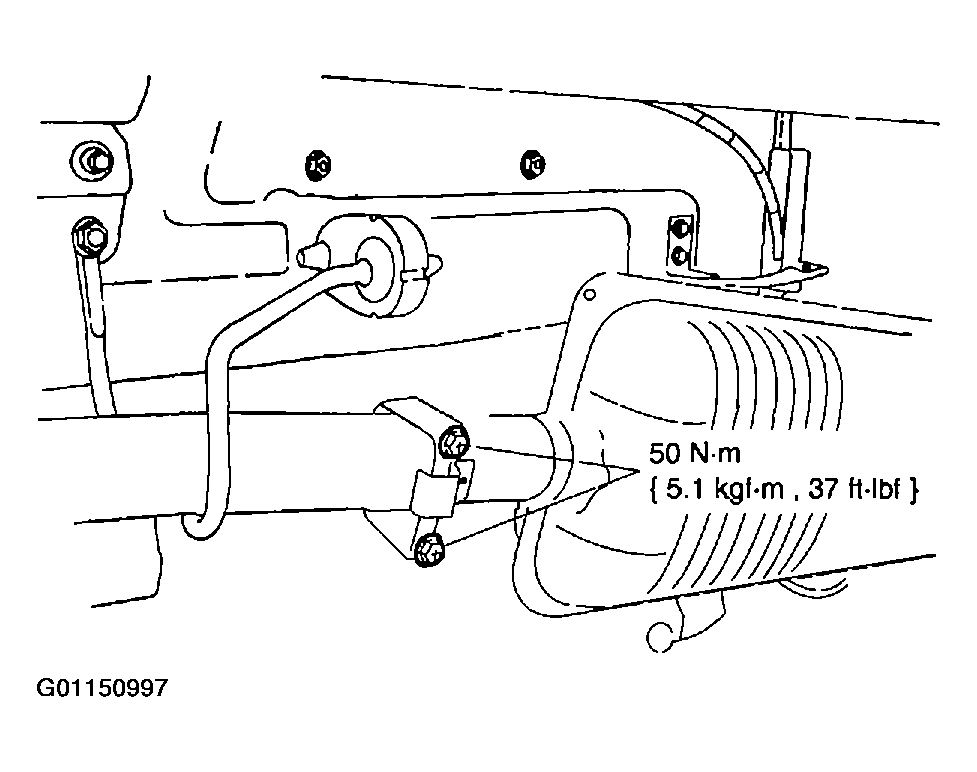

    Fig 1: Removing U-Bolt
    G01150997Courtesy of MAZDA MOTORS CORP.
  3. Remove the nuts and the muffler.
    • Discard the gasket and nuts.

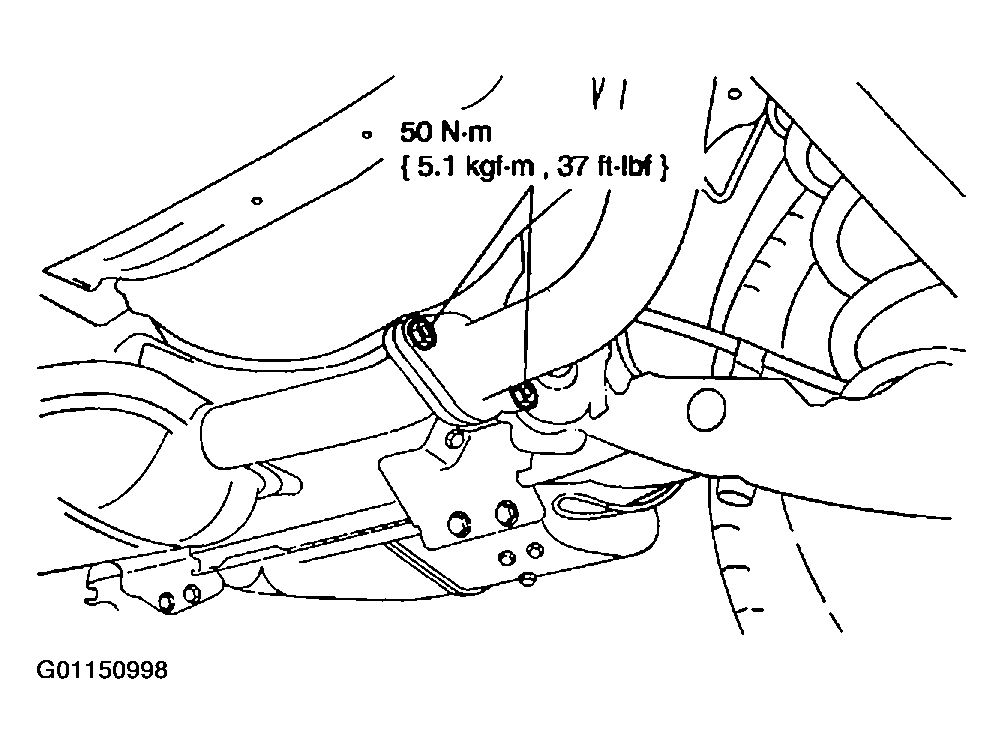

    Fig 2: Removing Muffler
    G01150998Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
    • Install a new gasket.
    • Install new nuts.
