Valve - Spring Installed Length

  1. Measure the installed length of each valve spring. Refer to SPECIFICATIONS .
    1. If out of specification, install new components.

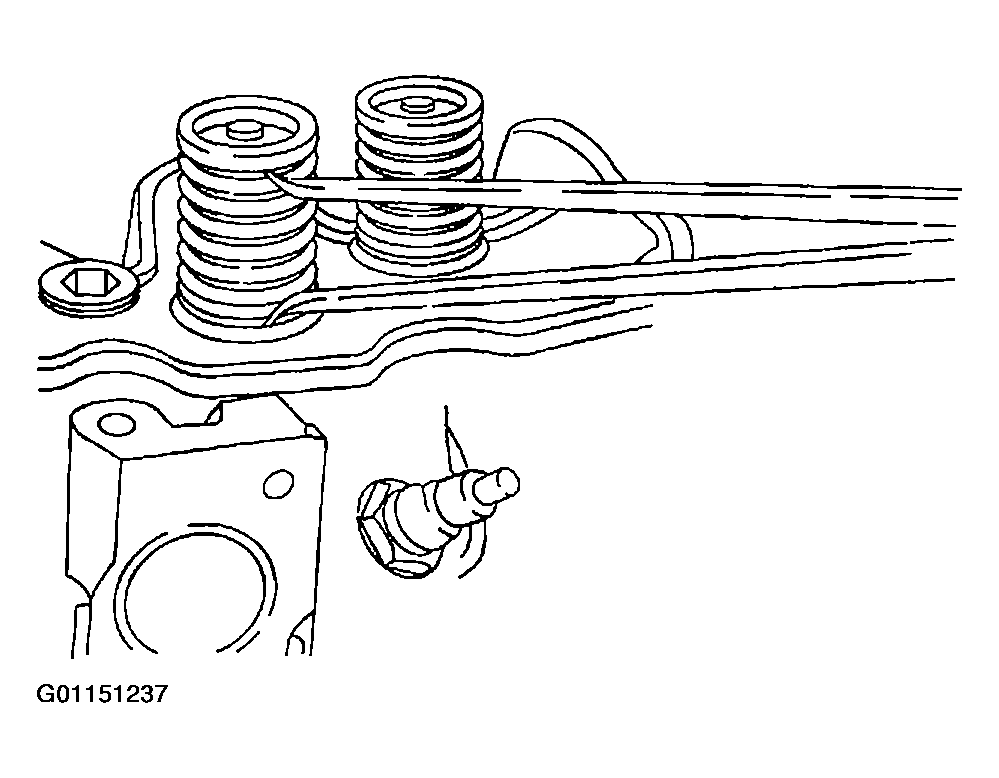

      Fig 1: Measuring Valve Spring Installed Length
      G01151237Courtesy of MAZDA MOTORS CORP.
