Piston - Ring-To-Groove Clearance

  1. Inspect for a step in the grooves.
    Fig 1: Inspecting For A Step In Grooves
    G01151254Courtesy of MAZDA MOTORS CORP.
  2. Measure the piston ring-to-groove clearance. Refer to SPECIFICATIONS .
    • If out of specification, install new components as necessary.

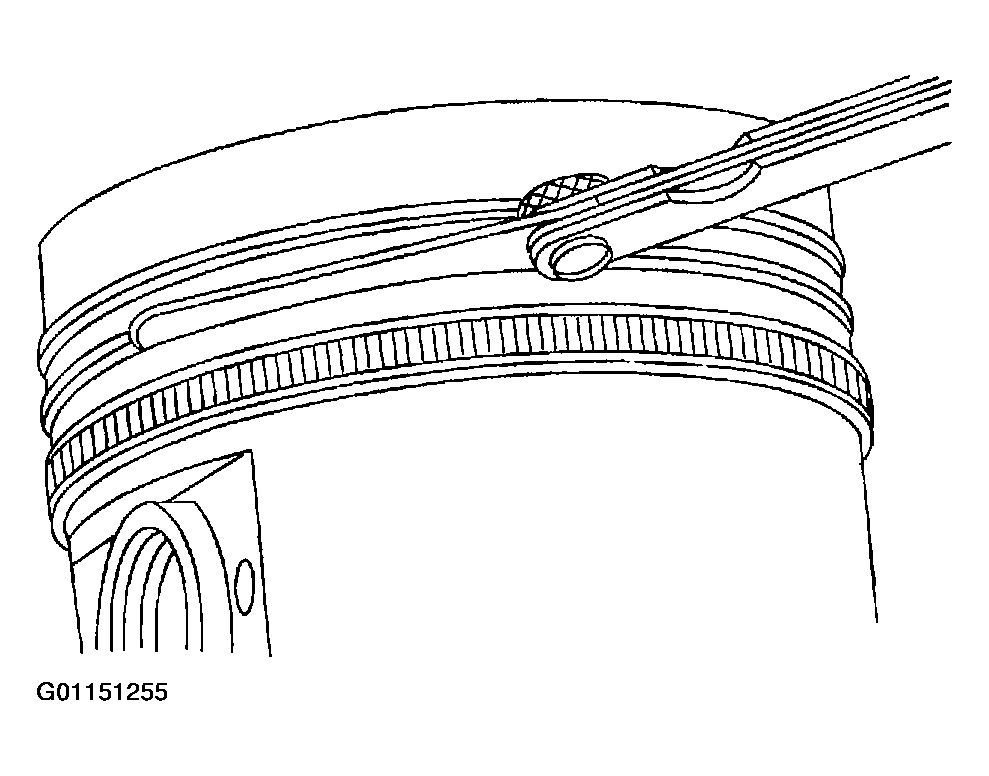

      Fig 2: Measuring Piston Ring-To-Groove Clearance
      G01151255Courtesy of MAZDA MOTORS CORP.
