Crankshaft Main Bearing Journal - Diameter

  1. Measure each of the crankshaft main bearing journal diameters in at least two directions. Refer to SPECIFICATIONS .
    • If it is out of specification, install new components as necessary.

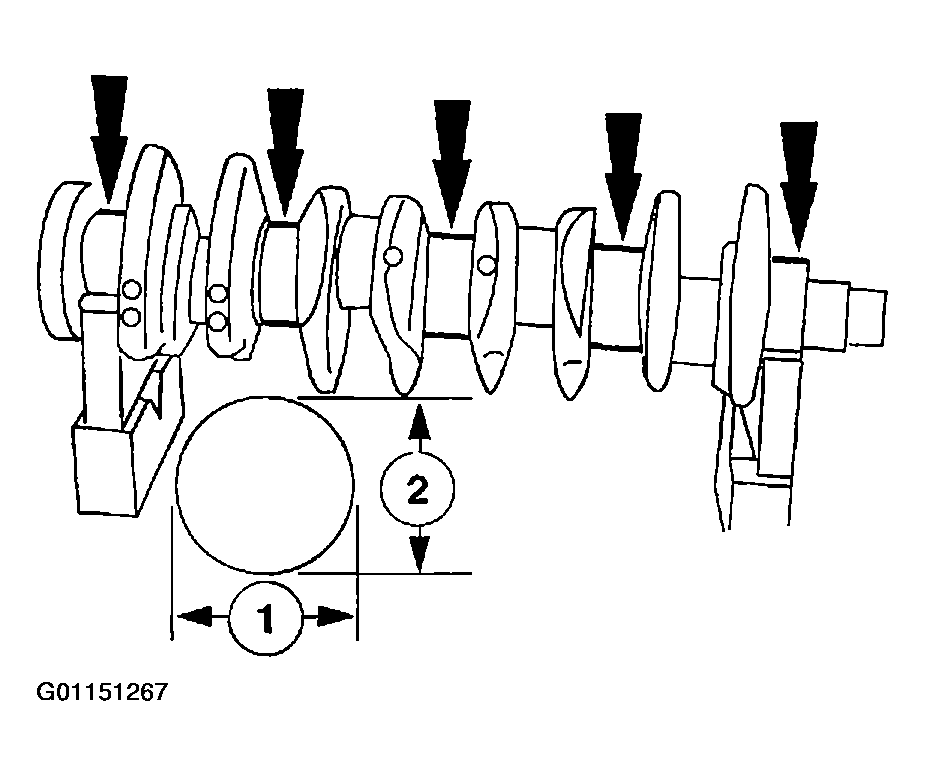

      Fig 1: Measuring Crankshaft Main Bearing Journal Diameter
      G01151267Courtesy of MAZDA MOTORS CORP.
