Crankshaft - End Play

  1. Measure the crankshaft end play. Use a Dial Indicator with Bracketry to measure crankshaft end play.
  2. Position the crankshaft to the rear of the cylinder block.
  3. Zero the indicator.

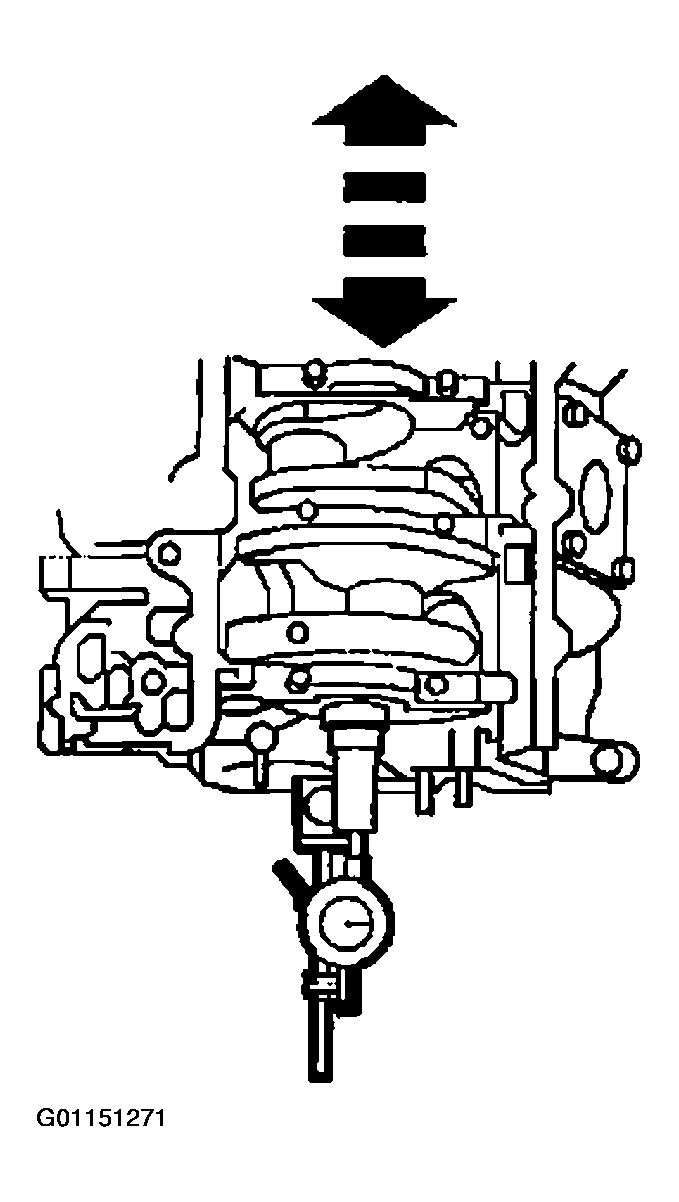

    Fig 1: Measuring Crankshaft End Play
    G01151271Courtesy of MAZDA MOTORS CORP.
  4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play. Refer to SPECIFICATIONS .
    • If crankshaft end play exceeds specifications, install a new crankshaft thrust washer or crankshaft thrust main bearing.
