Connecting Rod - Bend

  1. Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification. Refer to SPECIFICATIONS .
    1. If out of specification, install new components as necessary.

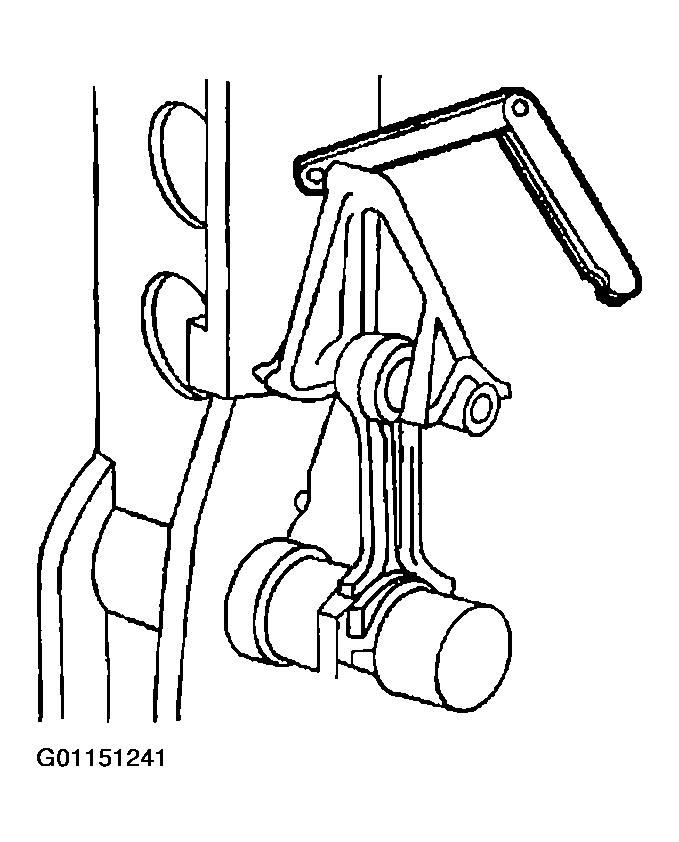

      Fig 1: Measuring Connecting Rod Bend
      G01151241Courtesy of MAZDA MOTORS CORP.
